6 in1 Hydra Facial Machine

Brief introduction:





Aqua facial handle	Ultrasound handle	Skin scrubber	RF handle	Spray gun	Cold hammer



Caution

1) Please turn off the power if needs to change the fuse.
2) Please pull out the power cable if needs to move the machine.
3) The instrument should be placed on the temperature between 5-40 degree, and placed in clean indoor, also avoid direct sunlight. And make sure the vents are not blocked. Do not put anything on the instrument at any situation even temporary.
4) Install the instruments with probes with the picture below and install the handles on the accessory holder and put in the right places.
5) Do not use any irritating skin care products, cosmetic within 24 hours after treatment and pay attention to the sun light.
6) Using moisturizing mask for a week after treatment.
7) Those do not use the machine:
a)Pregnant women
b)Cardiovascular disease, kidney disease, cancer, diabetes
c)Bacterial infection site
d)Keloid patients
e)Whom with heart pacemaker
f)Whom with extreme sensitivity of skin diseases
g)Whom with Erythema
h)Whom with thin skin cuticle cannot use hydro facial handle.
i)People with thin skin cuticle cannot use RF for more than 20 minutes.
j)Cannot use the machine with severe allergy or severe acne.
8) If the patient feels uncomfortable, please turn off the machine in case of dangerous.



How to install the instrument

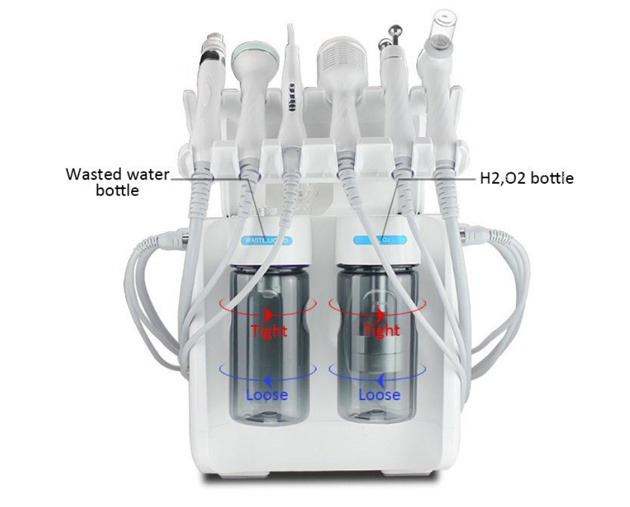

1. Description for the Back of the instrument





2. When moving the instrument, please remove all the liquid on the Bottle A,B,C,D, otherwise, liquid will enter the inside of the instrument during moving, causing damage to the instrument.
3. When using the instrument, if the instrument sounds beep beep, please observing the interface for the wasted bottle. If it is twinkling, please pour out the wasting water and install the wasted bottle to the instrument after done pouring out.



Operation procedures and methods

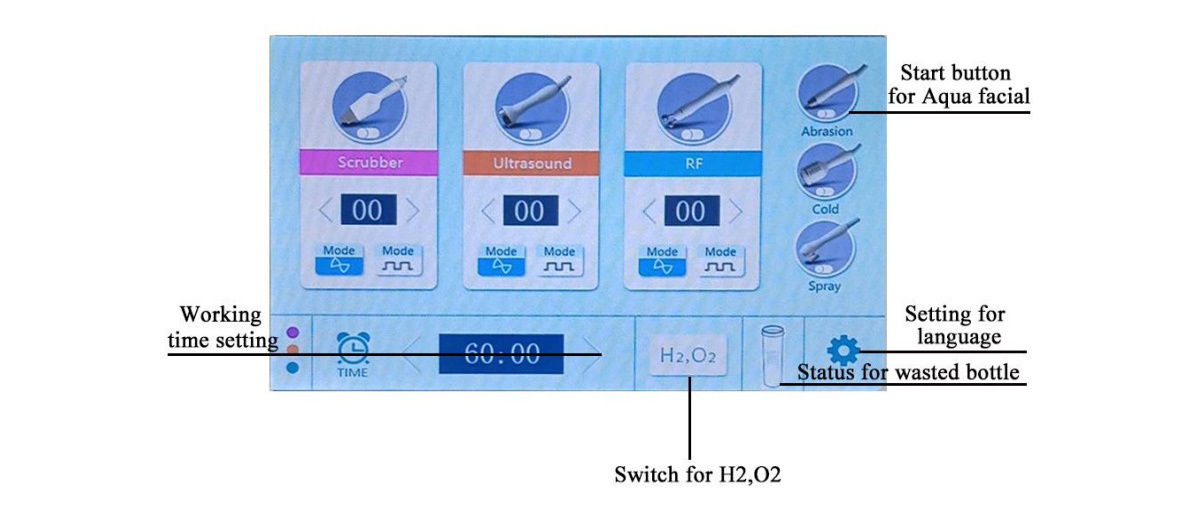

1. Using for Aqua facial handle







1.1 Cleaning the face by using facial cleanser.

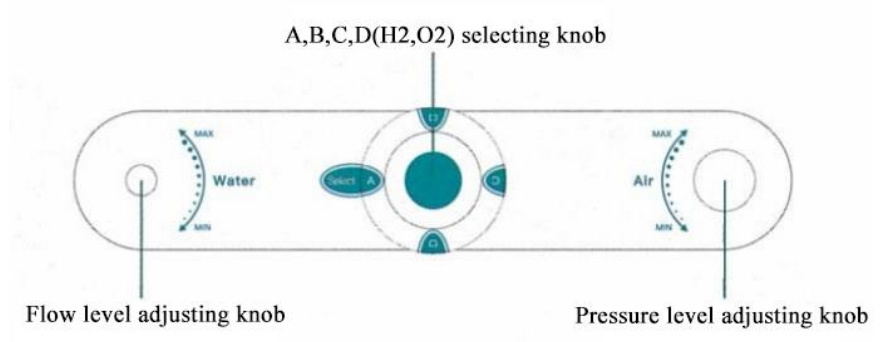

1.2 Choosing the aqua facial cleaning head according to the situation for the skin. Choosing the liquid (A,B,C) by rotating the knob or the H2, O2.
1.3 Adjusting the flow level and pressure lever to start working, the whole cleaning procedure can be working at about 10 minutes.
Caution: When using the H2,O2 from the bottle D which on the back of the machine, first select the knob to the D position, and press the Button (H2,O2), then please waitng for about 3 minutes, to make sure there are enough (H2,O2) inside the bottle.
1.4 When done using the instrument, select the knob to position C to cleaning the aqua facial tube. First, selecting the flow level to the maximum intensity, and then selecting the pressure level to the maximum. Then turn on the machine, putting on the aqua facial head to the aqua facial probe. Then the tubes inside the machine will be cleaned automatically





Caution:
When the liquids on the bottles are been using out, please input warm water to bottle A,B,C,D and cleaning the tubes by the methods for 4.1.4, to avoid blocking for the tubes.

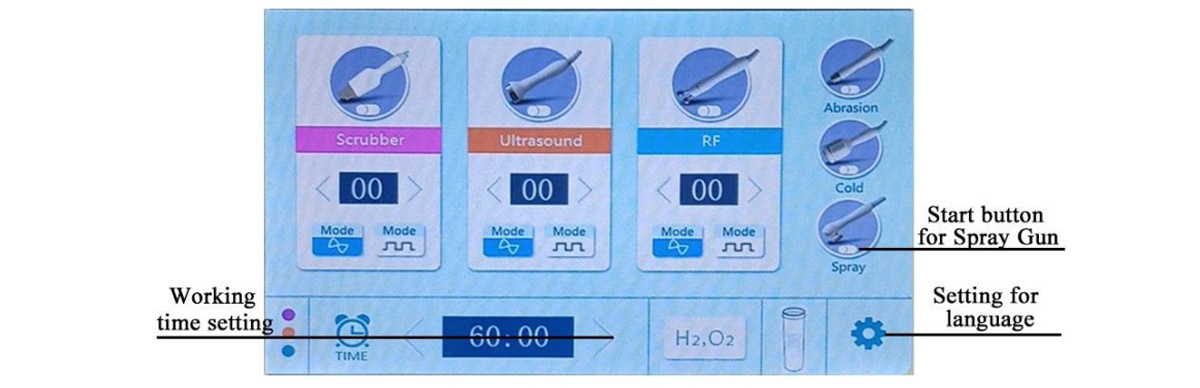

2. Using for Spray handle





2.1 Cleaning the treatment area before using the handle.
2.2 Input the dilution essence to the spray bottle.
2.3 Press the start button for the spray gun on the screen.
2.4 Press the button on the spray gun then the gun will start working and aim at the treatment area.

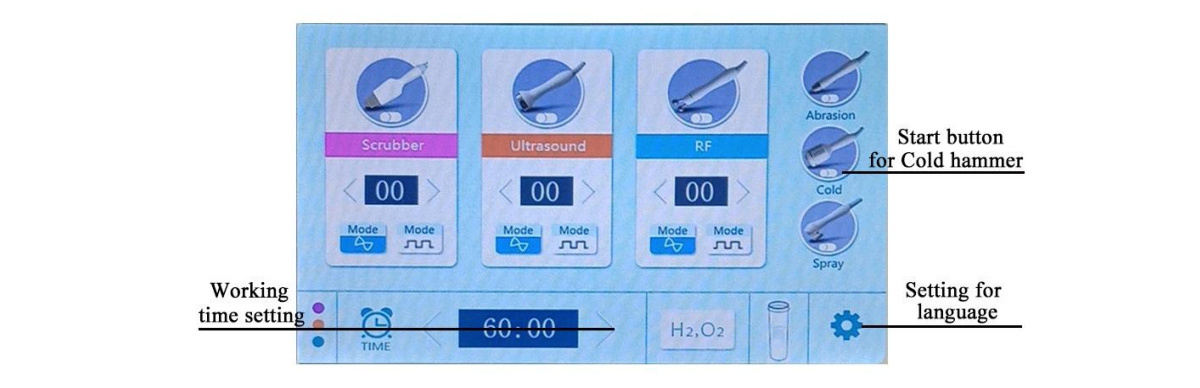

3. Using for Cold hammer



3.1 Cleaning the treatment area before using the cold hammer.
3.2 Press the start button on the screen.
3.3 Using the cold hammer on the treatment area.



Treatment on the face:
Start from ophryon and spread away, move upwards. As the photo shows.
1. From lower jaw to ear.
2. From lower jaw to nose.
3. From nose to Temple.
4. From inner corner to the temple, do not get too close to the eyes and be tender.

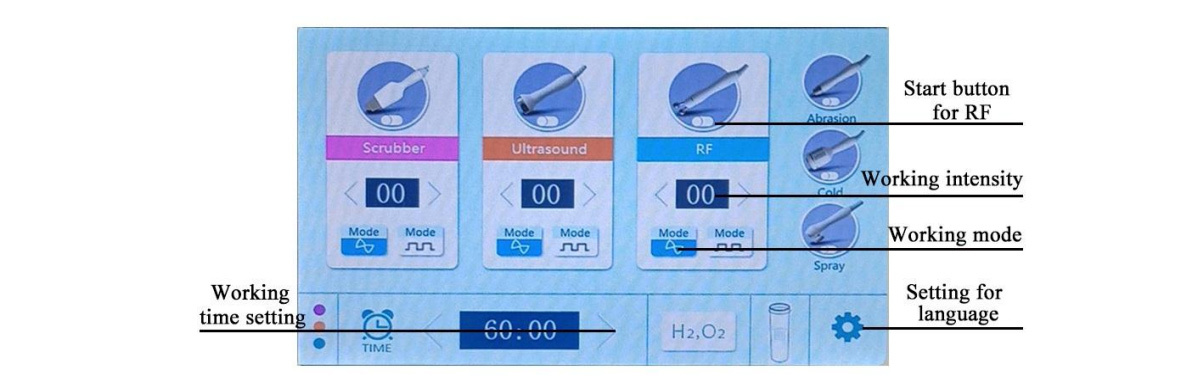

4. Using for RF





4.1 Cleaning the treatment area before using the instrument.
4.2 Apply suitable gel on the treatment area.
4.3 Adjusting the working time, RF intensity and RF mode before using.
4.4 Using the RF handle stay close on the treatment area, and press the start button on the screen to start the RF function.
4.5 According to the facial line and neck, do circling from bottom to top to realize detox. And operation time for each part should be around 10-15 minutes.



5. Using for Ultrasonic





5.1 Cleaning the treatment area before using the treatment.
5.2 Apply suitable gel on the treatment area.
5.3 Adjusting the working time, ultrasonic intensity and ultrasonic mode before using.4.5.4 Using the ultrasonic handle stay close on the treatment area, and press the start button on the screen to start the ultrasonic function.
5.5 According to the contour line and do circling for the treatment area at about 5-8 minutes.



6. Using for Skin scrubber





6.1 Cleaning the treatment area before using the treatment.
6.2 Adjusting the working time, intensity and mode before using.

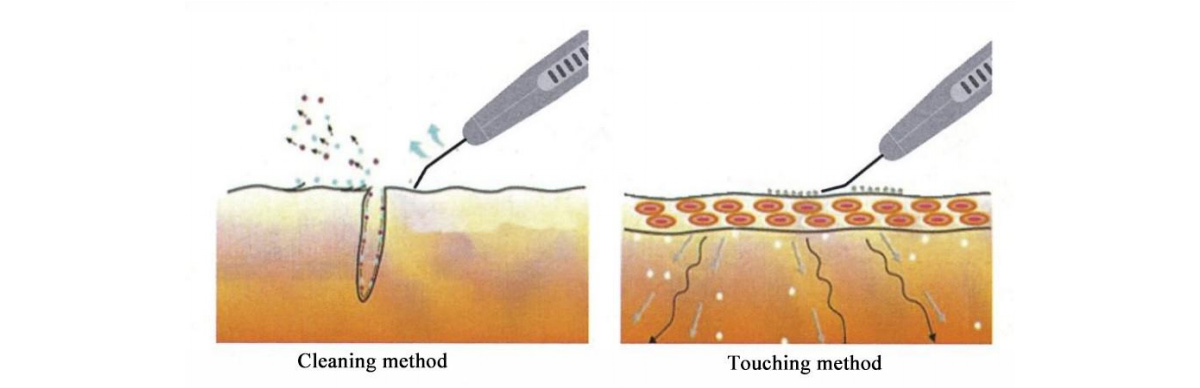

6.3 Using the cleaning method to remove the dirt from the skin surface.
1) Using the facial cleanser to clean the skin.
2) Sterilizing the skin scrubber before using, and let the customer hold the sticker when using.
3) Applying enough water on the skin.
4) The blade is tilted at 45 degrees, make sure it is close to the skin, moving up and down at moderate speed.
5) The whole working time is 20 minutes.
6.4 Using the touching method to do lymphatic massage.
1) Using the facial cleanser to clean the skin.
2) Sterilizing the skin scrubber before using, and let the customer hold the sticker when using.
3) Applying enough skin care products on the skin.
4) Make the skin scrubber head flating with the skin and moving it according to the texture of the muscles.
5) The whole working time is 15 minutes.





Maintenance service

1. The instrument is under warranty for one year except the accessories and the consumables. We would provide maintain service after the warranty period, but payable.
2. If you want to replenish or purchase the consumables and accessories, pleasecontact the distributor for advice.
3. Breakdown cause by human as below is out of our warranty.
a)Breakdown cause by dismounting or transforming the instrument by customer himself/herself.
b)Breakdown cause by incorrect or unreasonable maintenance.
c)Breakdown cause by beating or dropping the instrument.
d)Breakdown cause by incorrect operation.
e)Damage cause by irresistible disaster like earthquake, fire disaster.
4. Welcome for any comment and suggestion.
5. When cleaning machines, please use dry soft towel to swipe the machine for the dust, and use wet soft towel to swipe the machine for the dirty.



Accessories



Name	Name Qty
Power line	1 pc
Skin Scrubber	1 pc
RF handle	1 pc
Ultrasonic probe	1 pc
Cold hammer	1 pc
Hydro facial probe	1 pc
Hydro facial probe head	7 pcs
Spray gun	1 pc
