1064nm, 532nm super picosecond laser machine Q-switched laser
Super picosecond laser uses extremely short pulse output instead of thermal effect, and uses the principle of photomechanical shock wave to "pulverize" the pigment into fine particles by focusing energy, which is metabolized and absorbed and excreted out of the body.
Key Words：
1064nm, 532nm super picosecond laser machine Q-switched laser
Category：
Picosecond Laser
Top Sellers
Top Sales
Hot Sales
ODM
New Product
WhatsApp：
Email：
1064nm, 532nm super picosecond laser machine Q-switched laser
Specification
|
Size |
120×49×142CM |
|
Gross weight |
85KG |
Distinction
Ultra-picosecond laser/Q-switched laser uses extremely short pulse output instead of thermal effect. Through the principle of photomechanical shock wave, it "crushes" the pigment into fine particles by focusing energy, and then metabolizes and absorbs them out of the body.
Ultra-picosecond/Q-switched laser minimizes the side effects of thermal effect, and can almost achieve the purpose of solving various pigment spots, which is better than traditional laser whitening effect.

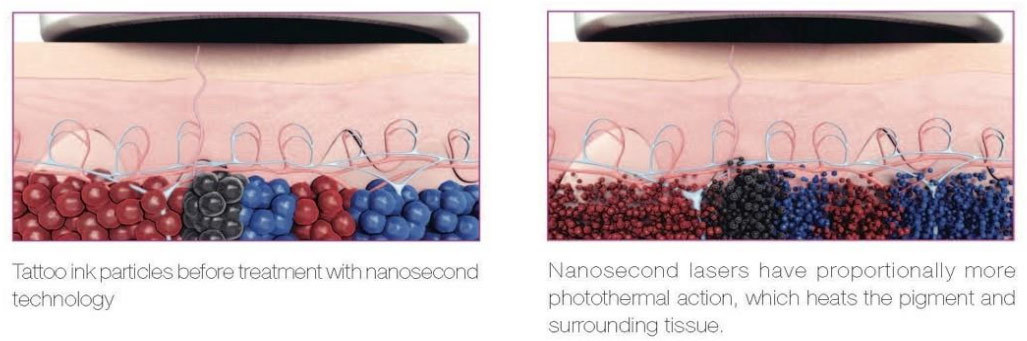

Traditional laser freckle removal uses nanosecond or millisecond laser, and uses photothermal effect to destroy melanin. Under strong laser irradiation, the probability of being burned and leaving pigmentation is relatively high, and the pigment particles can only be decomposed from block to "pebble" shape.
 |
 |

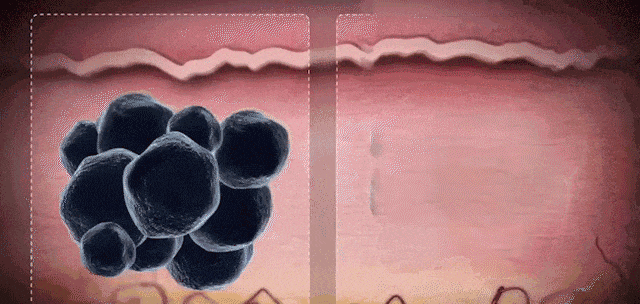

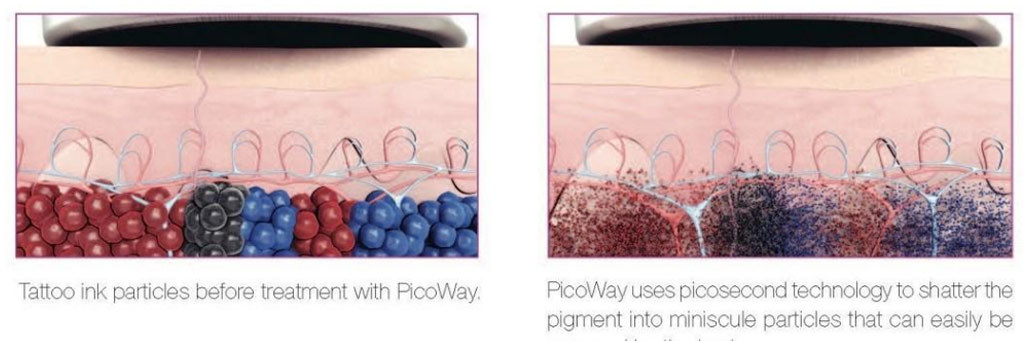

| Traditional laser: Shatters pigment into pebbles | Ultra-picosecond: Shattering pigments into dust |
1064/532nm Dual Wavelength Benefits
| Breadth | Depth | Safety |
| Most applicable Dual wave can remove multi-color tattoos |

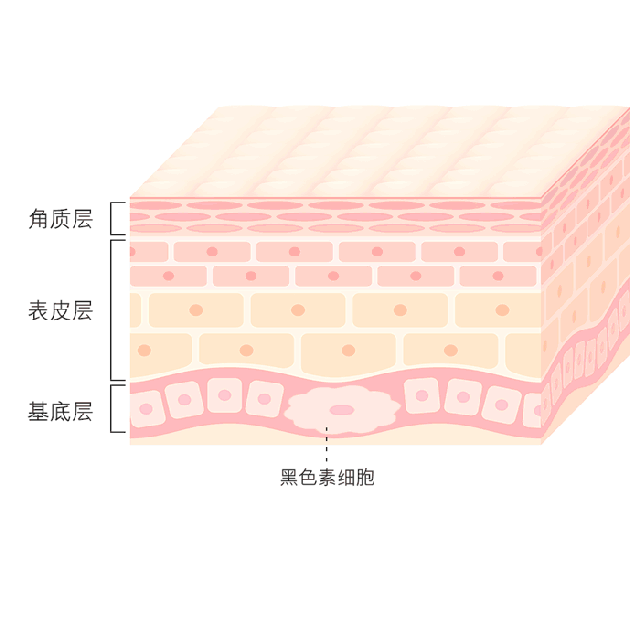

1064nm has a deep penetration depth and can remove deep skin problems | Melanin absorption is not too strong, safer and has no side effects |
Working Principle

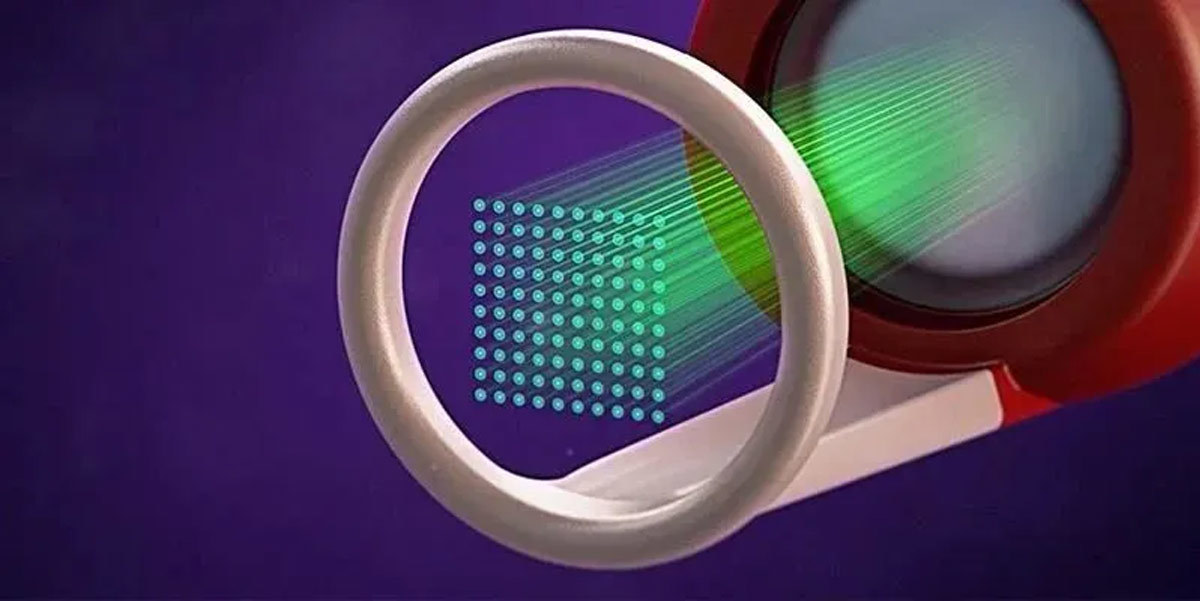

Under the action of ultra-short pulse width, high energy (peak power) and photoacoustic effect, picosecond laser can instantly and rapidly destroy melanin and decompose pigment particles into dust.
The faster the speed, the less side effects, the better the explosive power, and the better the effect.
The faster the speed, the less side effects, the better the explosive power, and the better the effect.
Scope of application:
Chloasma, coffee spots, freckles, sun spots, age spots, nevus of Ota, Acne scars，etc.
Ultrapicosecond advantages: fewer treatments, high clearance rate, high comfort, short recovery period, no side effects.

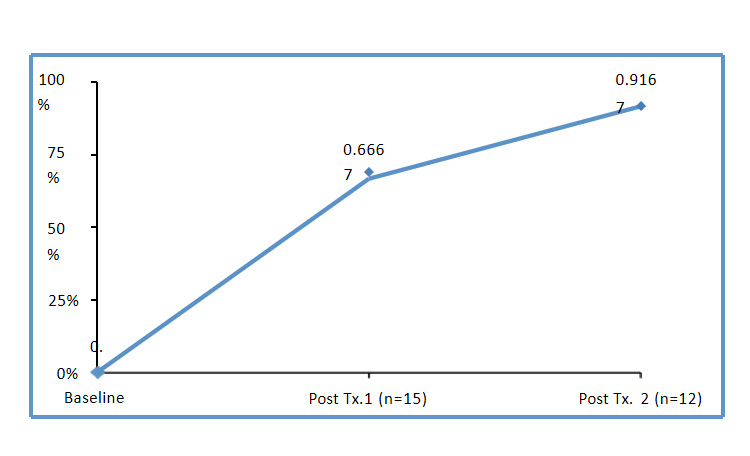

Pigmentation spot treatment results
One treatment can remove 67% of pigmentation spots
Two treatments can achieve a 92% removal rate
Whitening, fine lines removal, tattoo removal of various colors
 |
 |
| Before | After |
 |
 |
| Before | After |
 |
 |
| Before | After |
 |
 |
 |
| Before | After | 3 times Tx |
 |
 |
| Before | After |
Table Parameters
|
Super Picosecond Laser/Q-switched laser Parameter Information |
|
|
Machine Name |
Super Picosecond Laser |
|
Current |
<=20A |
|
Voltage |
AC220V 50Hz/AC110v60Hz |
|
Electric power |
<=1000W |
|
Xenon lamp |
Professionally customized F7-85-155 |
|
Crystal rod |
F6, F7 optional |
|
Output wavelength |
1064nm, 532nm |
|
Repetition frequency |
1\2|5\10Hz |
|
Pulse width |
8-15ns, |
|
Q-switching method |
Active Q-switching electro-optical Q-switching |
|
Laser mode |
Multi-mode |
|
Output energy |
1064nm@100-500mJ;532nm@50-250mJ |
|
Energy stability |
<=3%@1064nm\532nm |
|
Light guide arm |
7 joints, output efficiency >=80%, light spot |
|
Working mode |
Intermittent work, continuous working time maximum 50min, minimum stop 10min |
|
Cooling method |
Water cooling + air cooling |
|
Reference cooling capacity |
300W |
|
Reference water flow |
5L/Min |
|
Reference water pressure |
<=0.1Pa |
|
Reference water tank capacity |
6L |
|
Size |
120×49×142CM |
|
Gross weight |
85KG |
