Syringe Propulsion Device

Model and specification

 YSG-ZS-02

Instrument Introduction

The original Chunmei Hydration Machine is a high-tech beauty instrument that assists injection injection. It uses negative pressure technology to accurately replenish skin nutrients in the shallow and middle layers of the dermis, meeting the beauty needs of consumers to the greatest extent. It has a very broad application market space.



Instrument Advantages



Smarter	More accurate	more efficient	More Comfort
Fully automatic induction mode is convenient and quick to operate	Accurately control the dose and injection level of a single injection	The 32G9Pin needle has high injection efficiency and short operation time.	Doctors have good injection experience and customer satisfaction is high



1. Smarter

Pressure-sensitive automatic injection mode, easy and fast operation "the needle can automatically push the medicine after adsorbing the skin"

When the needle adsorbs the skin, the electronic injector automatically pushes for injection and stops automatically after the injection is completed.



4 injection modes to choose from:
1 Pressure sensing automatic injection	2 automatic single injection	3 single injections	4 continuous injection (normal speed) / (slow speed)



2. More accurate

Accurately control the amount of drug injected in a single time and accurately position it directly to the dermis layer "fixed point, quantitative and layered"





3. More efficient

 large injection area, high injection frequency, reducing leakage, reducing pain, accurate and uniform speed "9 times the injection speed, shortening the operation time"





4. More comfortable

"Doctors have a good injection experience and customer satisfaction is high." Experienced novices can also learn and use it immediately, reducing institutional training costs.



Doctors

Intelligent touch screen, convenient parameter setting, intelligent saving of commonly used parameters. Handle - ergonomically designed and easy to hold. Automatically calculate the number of injections and easily control the injection rhythm

Client

9 times injection speed, shortening operation time 32G ultra-fine needle, smaller wounds and less pain. The essence penetrates directly into the basal layer, with good results and no scars.

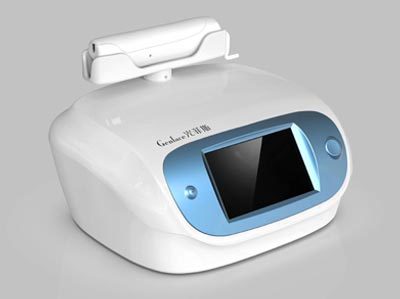

Instrument Composition

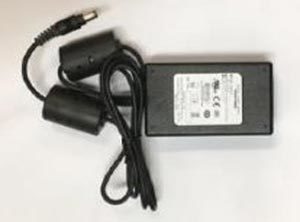

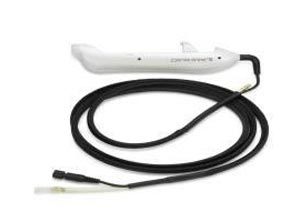

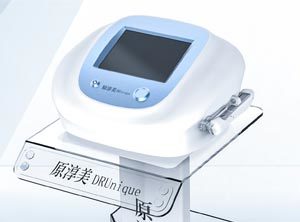

1. Instrument host	2. Handle	3. Power adapter	4. Foot valve

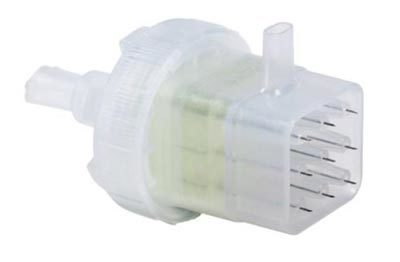

Disposable sterile needle, need to be purchased separately



Instrument Operation Method

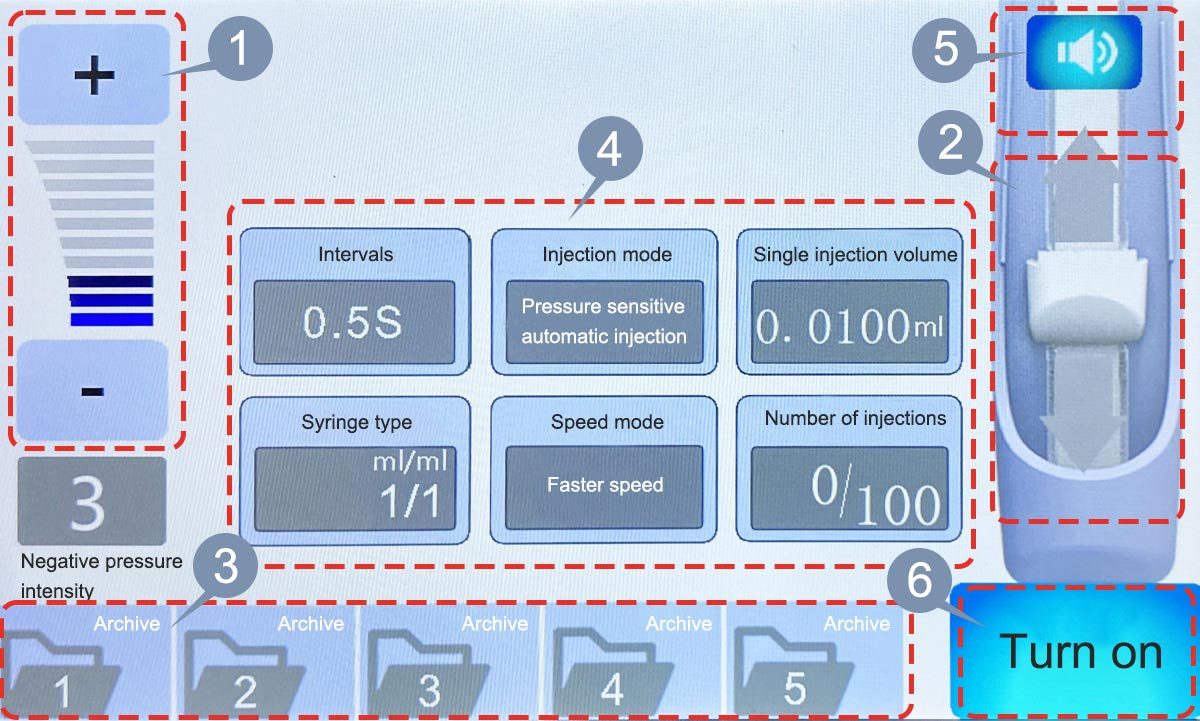

Illustrate
1	Adjust inhalation intensity

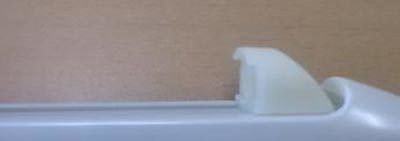

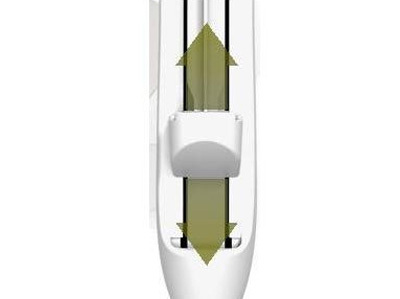

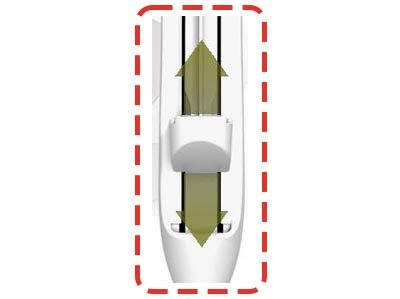

2	Adjust the syringe tip on the handle (up, down)
3	Save settings (1~5)
4	For specific settings, refer to the following content
5	sound settings
6	Start operation (prepare negative pressure)

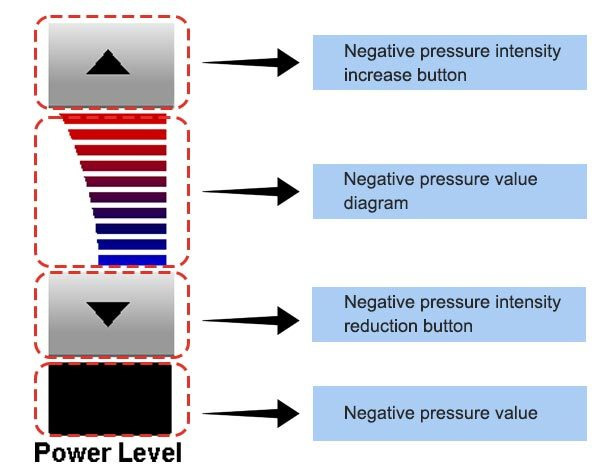

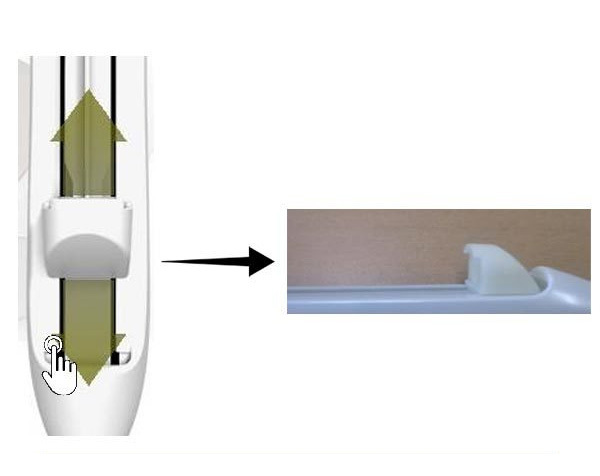

1. Adjust negative pressure intensity	2. Adjust the syringe tip on the handle
Press the Power level. Depending on the injection site, the doctor needs to adjust the standard of the inhalation device and then perform the operation.	Press the down button next to the main unit and the injector will move downward. After the syringe is installed, adjust the up button to connect the piston handle and the piston.

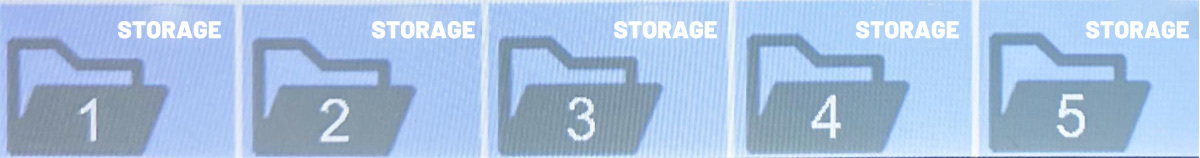

3. Save settings

To set commonly used parameter values, press and hold one of the buttons for 3 seconds, and the parameter will be automatically saved on the pressed button. If you need to adjust the saved parameters, just tap the button.

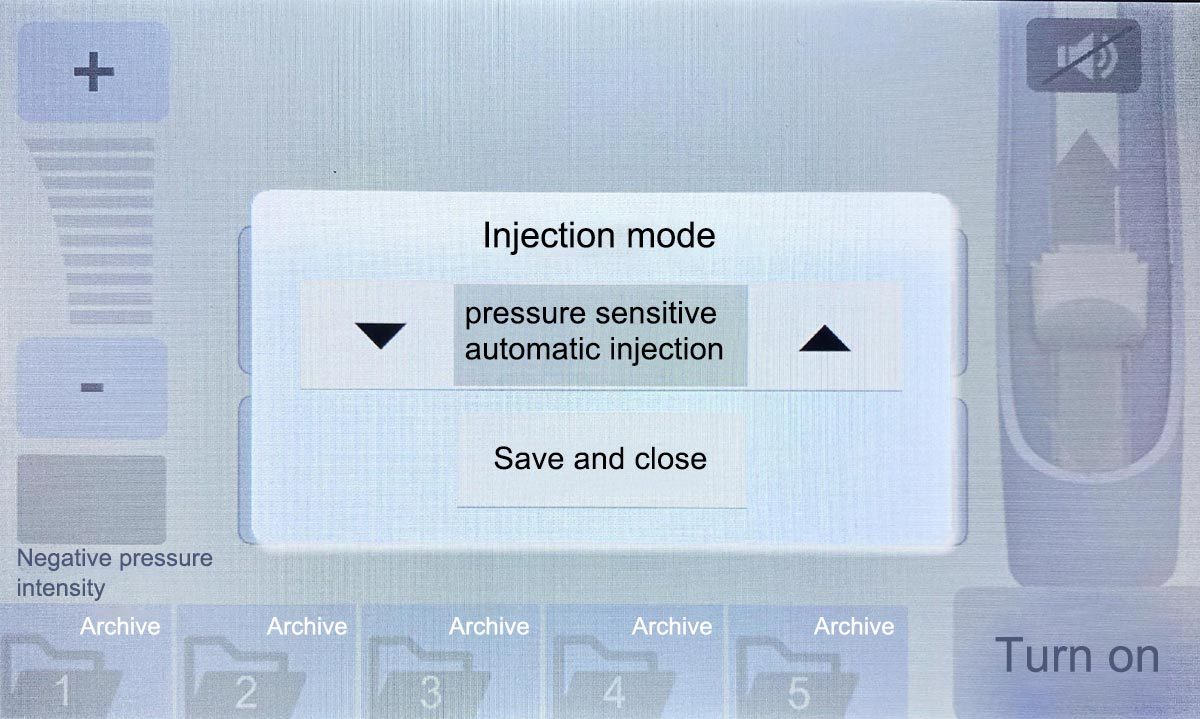

4. Injection mode settings

4 injection modes to choose from: a) Pressure-sensing automatic injection: When the needle enters the skin, the negative  pressure system automatically opens and the drug is automatically injected b) Automatic single injection: Start quantitative injection when the foot valve is pressed. c) Single injection: Press the foot pedal once to inject the drug once d) Continuous injection: Repeatedly inject the drug at normal or slower speed when the foot pedal is pressed

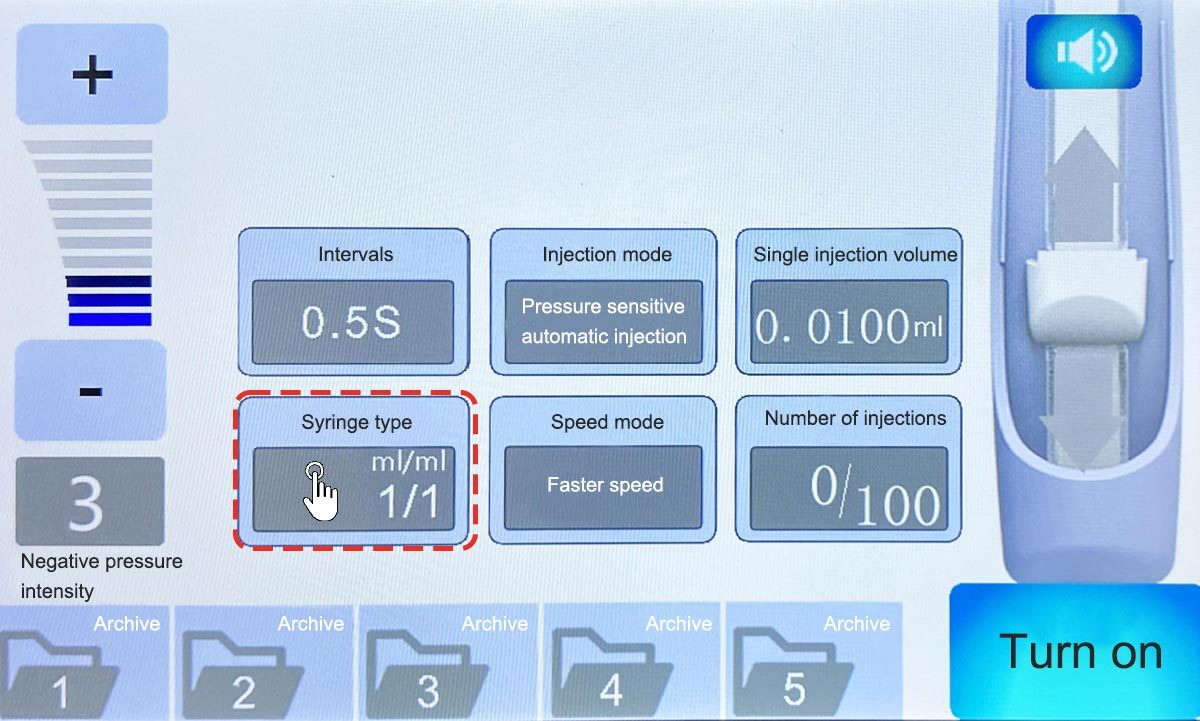

5. Syringe specification setting



No.	Description	Function
1	1ml/1ml	Select 1ml syringe, you can inject 1ml dose of medicine into the 1ml syringe.
		The total number of injections will be automatically determined according to different specific setting values.
2	1.5ml/3ml	Choose a general 3ml plastic syringe, and you can inject a 1.5ml dose of medicine into the 3ml syringe.
		The total number of injections will be automatically determined according to different specific setting values.
3	2ml/3ml	Choose a general 3ml plastic syringe, and you can inject a 2ml dose of medicine into the 3ml syringe.
		The total number of injections will be automatically determined according to different specific setting values.
4	2.5ml/3ml	Choose a general 3ml plastic syringe, and you can inject a 2.5ml dose of medicine into the 3ml syringe.
		The total number of injections will be automatically determined according to different specific setting values.
5	3ml/3ml	Select a general 3ml plastic syringe to inject a 3ml dose of medicine into a 3ml syringe.
		The total number of injections will be automatically determined according to different specific setting values.
6	4ml/5ml	Select a general 5ml plastic syringe to inject a 4ml dose of medicine into a 5ml syringe.
		The total number of injections will be automatically determined according to different specific setting values.
7	5ml/5ml	Choose a general 5ml plastic syringe, and you can inject a 5ml dose of medicine into the 5ml syringe.
		The total number of injections will be automatically determined according to different specific setting values.
8	(Hi)2ml/3ml	Select 3ml prefilled syringe, you can inject 2ml dose of medicine into the 3ml syringe.
		The total number of injections will be automatically determined according to different specific setting values.
9	(Hi)2.5ml/3ml	Select 3ml prefilled syringe, you can inject 2.5ml dose of medicine into the 3ml syringe.
		The total number of injections will be automatically determined according to different specific setting values.
10	(Hi)3ml/3ml	Select 3ml prefilled syringe, you can inject 3ml dose of medicine into the 3ml syringe.
		The total number of injections will be automatically determined according to different specific setting values.

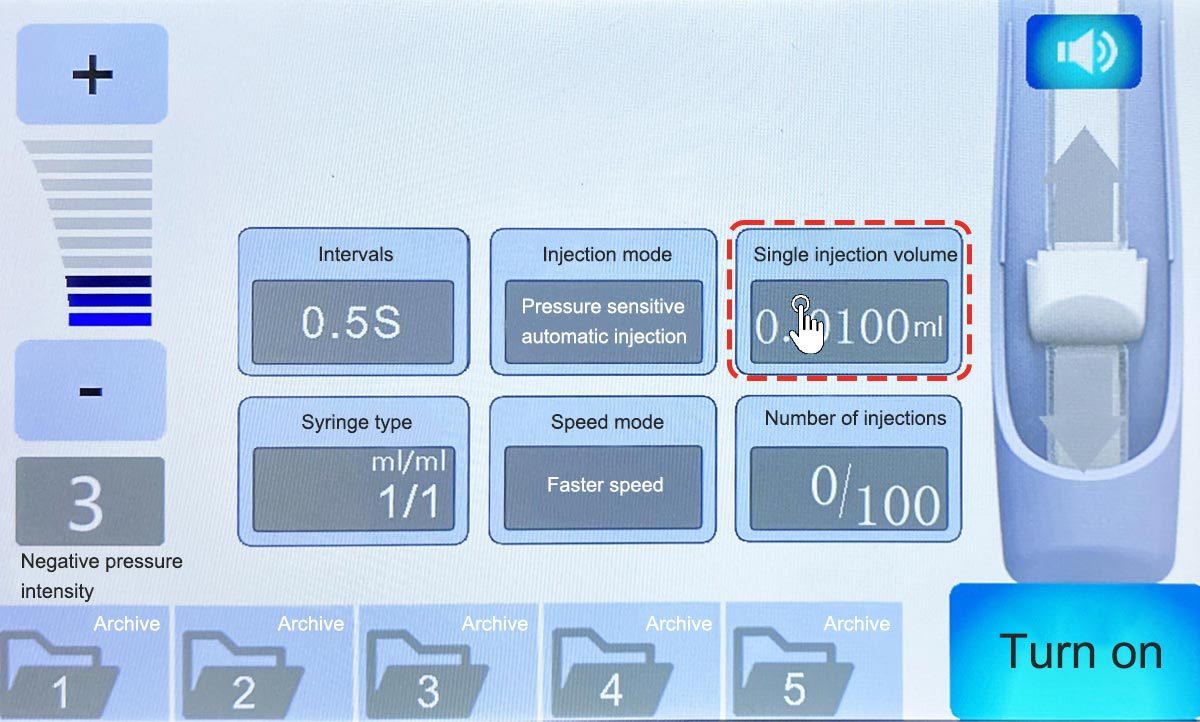

6. Setting the injection volume

After selecting the syringe specifications and the drug-liquid ratio, select the corresponding single injection volume, and the instrument will automatically calculate the number of injections. No additional adjustments are required.

 Conventional recommendations: single injection volume is about 0.03-0.045

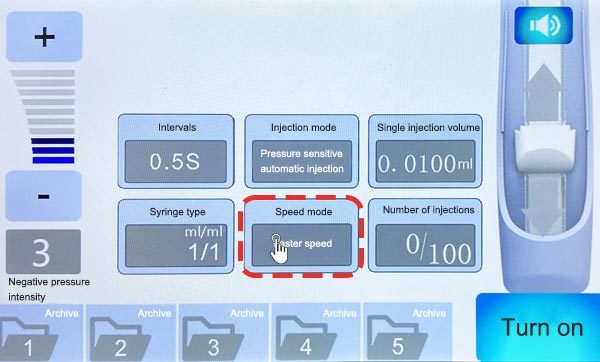

7. Adjust flow settings	General advice
	Traffic patterns(General advice)
	Fast	Faster injection speed
	Normal	Normal injection speed
	Slow	Slow injection speed

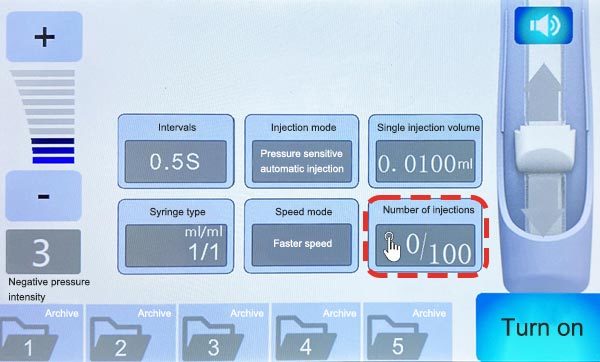

8. Total injection times setting

The total number of injections can be selected from 10 to 140 times General recommendation: 80-120 times



Instrument Operation SOP



① Turn on the original Chunmei water light machine	② Use the up and down buttons on the right side of the control console to confirm that the handle booster can move normally.	③ Enter the operation value of this water light treatment on the host

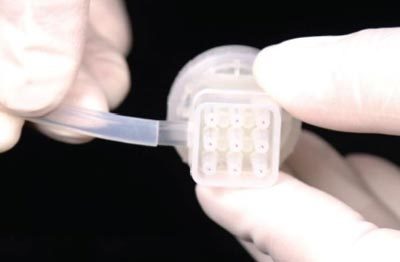

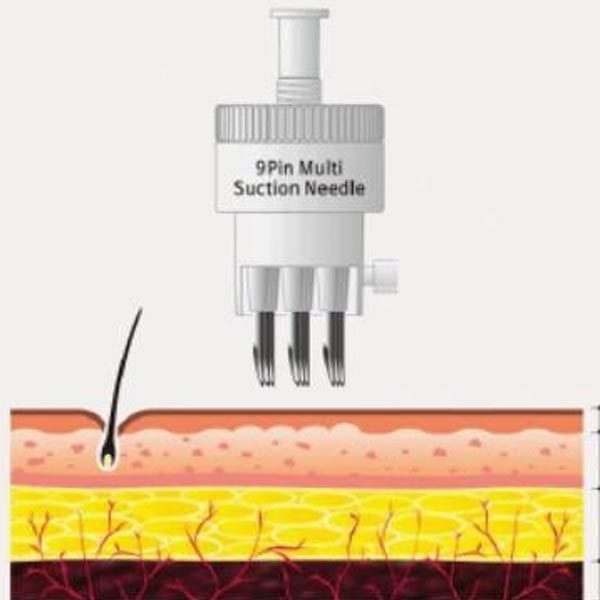

④ Connect the 32G9Pin needle to the syringe	⑤ Push the syringe piston to remove the internal air and make sure all 9 needles have squeezed out the liquid.	⑥ Connect the needle and the suction tube





⑦ Press and hold the "down" button on the right side of the host to make the handle booster retreat to a certain distance	⑧ Install the syringe on the original Chunmei electronic syringe	⑨ Use your thumb to insert the syringe head into the corresponding position of the front card slot and press it into the card seat.





⑩ Press and hold the "Up" key to move the handle booster to the syringe handle and fix it.	⑪ Confirm the injection needle length and injection parameters again, hold the handle with your right hand, and turn on the "ON" switch	⑫ Gently suck up the skin, the instrument will automatically inject the medicine until a "beep" prompt sound appears, indicating that the injection is completed, and the skin will be automatically released.





Recommended injection sequence: Mandible-cheek-eye-periorbital-temporal-forehead-nose     Because the injection needle is thin, multiple injections may cause the skin tissue to block the needle. If the number of injections exceeds 80~100 times, the disposable 32G9Pin injection needle should be replaced.
	Water light injection play: UT play

Scope of application

This product is used in conjunction with disposable sterile syringes and disposable sterile injection needles that have obtained medical device registration certificates. It is operated by trained medical personnel in medical institutions and is used for quantitative control of sodium hyaluronate injection into the dermis of patients' faces.



Contraindications

1. Patients who are allergic to drugs or have severe adverse reactions;
2. Emotionally unstable or unwilling to accept;
3. Psychiatric patients whose condition cannot be controlled;
4. Patients with a history of improper medication or suicidal thoughts;
5. Patients with acute diseases;
6. Pregnant women and young children;



Product performance

1. Injection accuracy: The deviation between the actual injection dose and the set dose of the syringe auxiliary propulsion device should be within the range of ±5%
2. Negative pressure intensity: Negative pressure gears are divided into: 1st gear, 2nd gear, 3rd gear, 4th gear, 5th gear, 6th gear, 7th gear, 8th gear, 9th gear, 10th gear.
3. Injection speed
The injection gears are divided into 3 gears: slow, normal, and fast. The corresponding propulsion speeds are shown in Table 2.
4. Infusion function
4.1 Injection mode
The injection mode is divided into: automatic induction, automatic single, single, and continuous. 2
4.2 Injection specifications
Injection specifications are divided into: 0.8/1ml, 1.5/3ml, 2/3ml, 2.5/3ml, 3/3ml, 4/5ml, 5/5ml. Specific descriptions are as follows:



Injection Specification Description List

Injection specifications	Syringe specifications	Injection dose	Description
0.8/1ml	1ml	0.8ml	Indicates that a syringe with a capacity of 1ml draws in 0.8ml of liquid
1.5/3ml	3ml	1.5ml	Indicates that a 3ml syringe aspirates 1.5ml of liquid
2/3ml		2ml	Indicates that a 3ml syringe aspirates 2ml of liquid
2.5/3ml		2.5ml	Indicates that a 3ml syringe aspirates 2.5ml of liquid
3/3ml		3ml	Indicates that a 3ml syringe aspirates 3ml of liquid
4/5ml	5ml	4ml	Indicates that a 5ml syringe draws in 4ml of liquid
5/5ml		5ml	Indicates that a 5ml syringe draws in 5ml of liquid



4.3 Number of injections
The number of injections can be set from 10 to 140 times, with a step of 10.
4.4 Storage function
The device has 4 storage buttons, which can store 4 groups of commonly used parameters. After starting up, it enters the standby display interface.
The interface displays the parameter information when the device was last shut down.
4.5 Prompt function
4.5.1 Gas line blockage: When gas line blockage occurs, the display screen jumps to the "Gas line blockage" prompt interface, the working buzzer sounds once, the prompt light flashes yellow once, and the device does not work;
4.5.2 Power failure alarm: When the device is abnormally powered off, the display screen jumps to the "Power failure alarm" prompt interface, the working buzzer sounds once per second, the prompt light flashes red once for 3 minutes, and the device does not work;
4.5.3 Motor stalling: When the motor stalls, the display screen jumps to the "Motor stalling" prompt interface, the buzzer sounds once, the prompt light flashes yellow once, and the device does not work;
4.5.4 Insufficient negative pressure: When the device has insufficient negative pressure, the display screen jumps to the "Insufficient negative pressure" prompt interface, the buzzer sounds once, the prompt light flashes yellow once, and the device does not work.
4.6 Noise
The noise should be lower than 60dB(A) during normal operation.



Normal working conditions

1. Ambient temperature (5-40)℃. If the device is moved from a low temperature area to an operating temperature area, it should be placed in the packaging for at least 4 hours before opening the packaging and starting the device.
2. Relative humidity: 20%-90%.



Electrical safety

1. Classification by electric shock protection type: Class II;
2. Classification by safety level when used with flammable anesthetic gas mixed with air or flammable anesthetic gas mixed with oxygen or nitrous oxide: Not applicable;
3. Rated voltage and frequency: power adapter input: AC 220V 50Hz, power adapter output: DC12V 5A;
4. Rated input power: 90VA.

Product usage instructions

1. Software

Software name: Syringe auxiliary propulsion device control software
Software model specification: ZS-R
Software release version number: V1.2

2. Description of each component of the product
Host function: Displays negative pressure intensity, injection speed, injection mode, injection specifications, injection times, storage function and infusion function. Each function mode can be controlled by the adjustment button on the display screen;
Injection handle function: Used with syringe and injection needle;
Foot switch function: Used with injection mode;
Power adapter function: Power input and output;
Embedded software function: Controls the negative pressure intensity, injection speed, injection mode, injection specifications, injection times, storage function and infusion function of the product.



3. Product Installation

3.1 Fixing the syringe
This product can be placed directly on the table for use. The fixing height should be about 0.5m above the bed and about 1.2m above the ground.

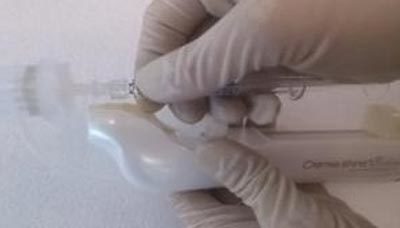

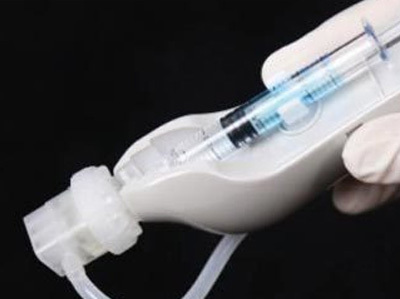

3.2 Installation of syringe and injection needle
When using 1ml/3ml/5ml syringe, the installation steps are as follows:
（1）Install the corresponding specification holder to the handle body;
（2）The syringe sucks the corresponding dose of liquid;

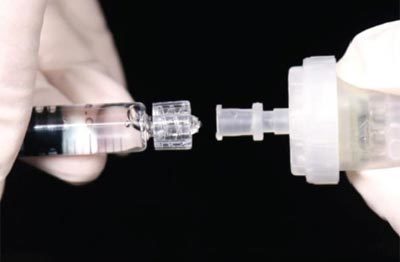

（3）Install the injection needle to the syringe, push the syringe piston, and exhaust the air;

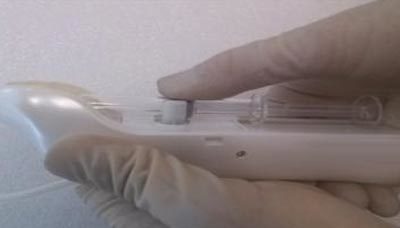

（4）Install the syringe and injection needle as a whole to the handle body;

3.3 Connection of air pipe and filter tube
（1）Connect the handle air pipe and filter tube with a metal Luer connector;
（2）Insert the other end of the filter tube into the exhaust hole of the nine-needle needle, suck the injection liquid with the syringe and connect it with the nine-needle needle;
（3）Then clamp the syringe and needle in the working position of the handle. (Note that before clamping the syringe, adjust the position of the handle push rod first. After the syringe is clamped, adjust the push rod position to exhaust the air in the syringe)

3.4 Schematic diagram of injection handle connection



Injection handle connection diagram



4. Instructions for use


4.1 Power on
Press the power button to start the power on operation. After power on, run the self-test program. If there is a prompt message, enter the corresponding prompt interface. If there is no prompt message, directly enter the standby display interface. The standby interface displays the information when the power was last turned off;

4.2 Operation method

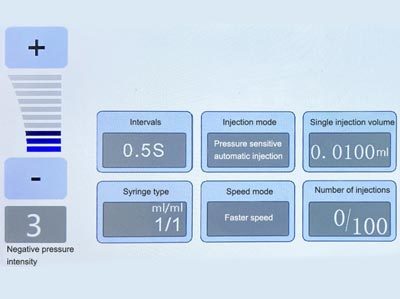

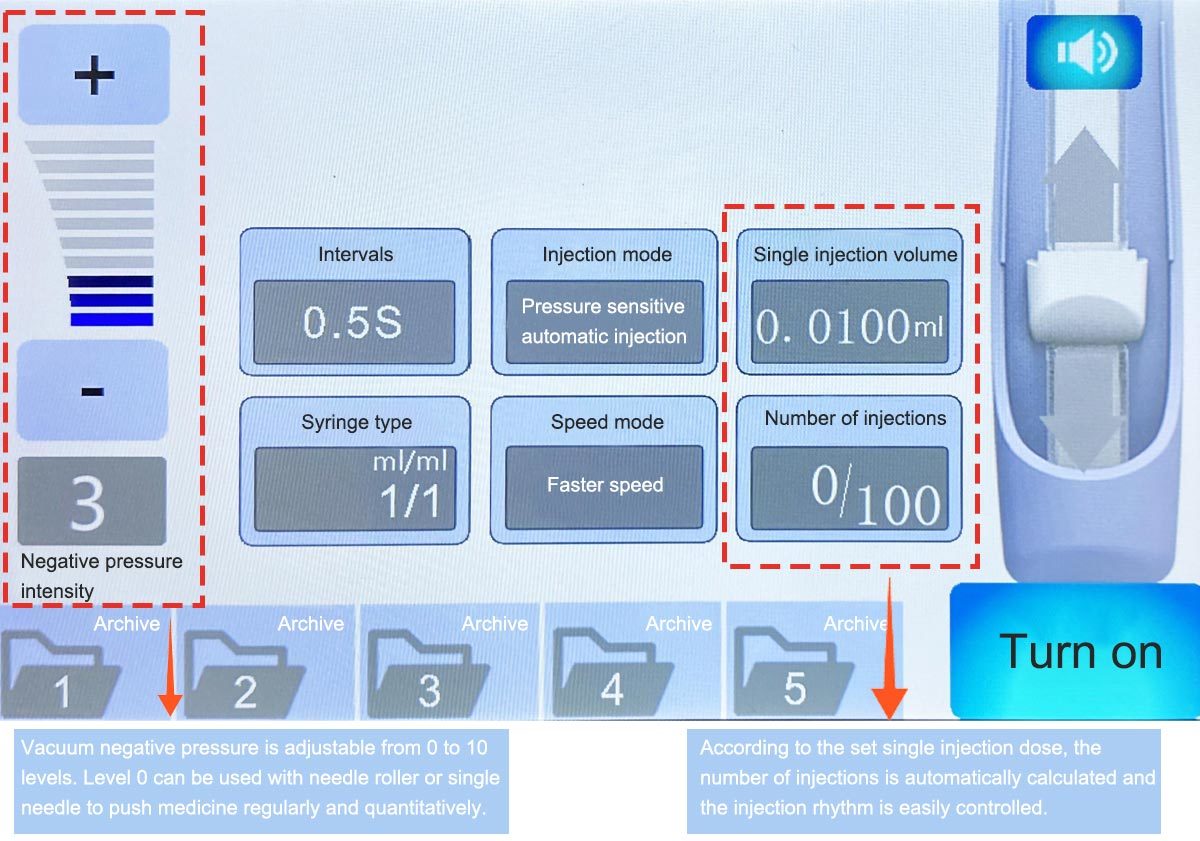

4.2.1 Standby display interface





4.2.2 Injection speed
Press the left and right arrows in the injection speed display area of ​​the standby interface to set the injection speed. After setting, it will take effect immediately and automatically save as the parameters of the current storage block.
Speed ​​gear: Slow, normal, and fast speed gears are optional.

4.2.3 Negative pressure intensity setting
The negative pressure intensity can be set by touching the up and down buttons, and the icon and number are indicated synchronously. The maximum negative pressure intensity is 10 levels, and the minimum negative pressure intensity is 1 level. After setting, it will take effect immediately and automatically save as the parameters of the current storage block.

4.2.4 Injection mode setting
Press the left and right arrows in the injection mode display area of ​​the standby interface to set the injection mode. After setting, it will take effect immediately and automatically save as the parameters of the current storage block.
Automatic sensing: After selecting the parameters to start the device, the injection will be automatically completed according to the set parameters after the skin is sensed.
Automatic single: After selecting the parameters to start the device, it will automatically inject once when the skin is sensed and there is a foot signal. If there is always a foot signal, an injection will be performed each time the skin is sensed.
Single: After selecting the parameters to start the device, it will automatically inject once when the skin is sensed and there is a pedal signal. If there is always a pedal signal and the device does not release and then step on the action, it will not perform the next injection.
Continuous: After selecting the parameters to start the device, it will sense the skin and inject continuously when there is a pedal signal.
The injection will stop when the pedal signal disappears.



4.2.5 Injection Specifications
Press the left or right arrows in the injection specification display area of ​​the standby interface to set the injection dosage. Once set, it will take effect immediately and automatically saved as the parameters of the current storage block.
（1）0.8/1ml: means to select a 1ml syringe and inhale the liquid to the 0.8ml mark;
（2）1.5/3ml: means to select a 3ml syringe and inhale the liquid to the 1.5ml mark;
（3）2/3ml: means to select a 3ml syringe and inhale the liquid to the 2ml mark;
（4）2.5/3ml: means to select a 3ml syringe and inhale the liquid to the 2.5ml mark;
（5）3/3ml: means to select a 3ml syringe and inhale the liquid to the 3ml mark;
（6）4/5ml: means to select a 5ml syringe and inhale the liquid to the 4ml mark;
（7）5/5ml: means to select a 5ml syringe and inhale the liquid to the 5ml mark;

4.2.6 Injection times
Press the left or right arrows in the injection times display area on the standby interface to set the injection times. Once set, it will take effect immediately and automatically save as the parameters of the current storage block.
Injection times: 10/20/30/40/50/60/70/80/90/100/110/120/130/140, a total of 14 times are available.
When adjusting the injection times, the device calculates the single injection volume in real time according to the selected injection specifications and the currently selected injection times.

4.2.7 Injection accuracy
Press the left or right arrows in the injection dose display area on the standby interface to set the injection dose. Once set, it will take effect immediately and automatically save as the parameters of the current storage block.
The injection dose is calculated according to the currently selected syringe specifications and the step value of the injection times.

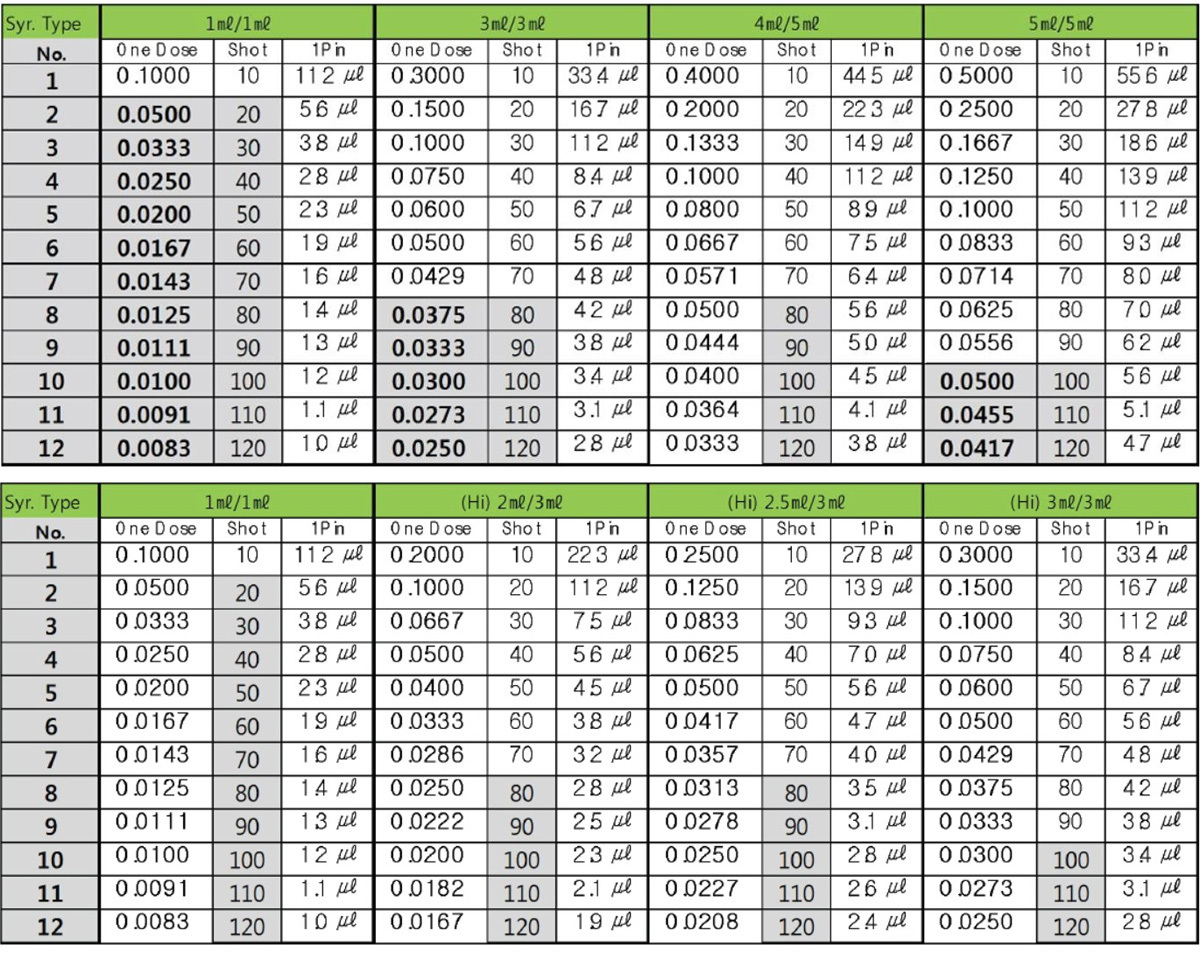

The reference injection dose table is as follows:

4.2.8 Propulsion device position control
Press and hold the up and down arrows to control the movement of the propulsion device, and release to stop immediately.

4.2.9 Storage function
The device has 4 storage buttons, which can store 4 groups of commonly used parameters. After starting up, it enters the standby display interface, and the interface displays the parameter information when the device was last shut down.

4.2.10 Turn the key tone on and off
Press the speaker button to switch the key prompt tone on and off.

4.2.11 Language selection
The device has a Chinese and English switch button, which can switch the display of Chinese or English interface.

4.2.12 Start and stop control
Press repeatedly to switch back and forth between start and stop.

4.2.13 Shutdown
After use, press the switch button to shut down.



4.3 Fault Indicators and Tips

4.3.1 Gas path blockage

If the device is running automatically or the position of the propulsion device is adjusted manually, if a stall occurs, the motor will stop rotating immediately and stop after running in the opposite direction for about 1mm. At the same time, the interface shown above will be entered. Press the "Confirm" button in the white square area in the middle of the screen to enter the standby display interface. The buzzer will sound once and the indicator light will flash yellow once.



4.3.2 Power-off prompt

If an abnormal power outage occurs during the operation of the device or the shutdown button is pressed, the device will resume power supply within 3 minutes. At this time, the interface shown in the figure above will be entered to remind the operator that an abnormal power outage occurred during the last injection. Press the "Confirm" button in the white square area in the middle of the screen to enter the standby display interface. When an abnormal power outage occurs, the device immediately uses the power stored in the backup capacitor to open the solenoid valve and release the negative pressure of the negative pressure system, so that the injection needle can be separated from the skin normally. After an abnormal power outage occurs, the buzzer sounds once per second and the warning light flashes red once for 3 minutes;



4.3.3 Motor stall

If the device stalls during automatic operation or when the propulsion device is manually adjusted, the motor will stop rotating immediately and stop after running in the opposite direction for about 1mm. At the same time, the interface shown above will be entered. Press the "Confirm" button in the white square area in the middle of the screen to enter the standby display interface. The buzzer will sound once and the indicator light will flash yellow once.



Airway blocked	Power off reminder	Motor stall



4.3.5 Injection reminder
After each injection, the buzzer will sound once as a reminder, and after the injection is completed, the buzzer will sound twice as a reminder.



Common troubleshooting methods



Common fault handling
Serial number	Fault phenomenon	Fault type	Fault cause	Maintenance suggestion
1	Incorrect injection dose	Syringe specifications	Not using the syringe recommended by our company	Use the syringe recommended by our company
2		Configuration does not match the actual	The syringe specifications selected through the screen are inconsistent with the actual syringe used	Check to keep consistent
3		Mechanical error	Mechanical error caused by long-term operation	Please contact our company
4	Syringe does not advance	Negative pressure system abnormality	Gas circuit connection leaks	Reconnect gas circuit
5			Needle is not close to the skin	Standardized use
6	Motor stall prompt	Motor stall	Propulsion device runs to the maximum position	Let the propulsion device run in the specified range
7			Handle line is not connected normally	Reconnect handle line
8			Motor or encoder damaged	Please contact our company



Product maintenance and care methods

1. Maintenance
If you find any signs of damage to the function of this product, do not continue to use it, please contact our maintenance engineer.
Every 12 months or after each maintenance, a qualified person must conduct a comprehensive inspection of the equipment, including a functional safety inspection.
All inspections that require opening this product must be conducted by qualified maintenance personnel.
Safety and maintenance inspections can also be conducted by our personnel.

2. Cleaning and disinfection
After each use, wipe the surface of the product and its accessories with a clean cloth, then wipe the surface with 75% medical alcohol 2-3 times for disinfection, and dry it naturally or with a clean, dry cloth.

3. Storage and transportation conditions and methods
a. Do not throw or drop during loading and unloading; avoid severe vibration during transportation;
b. During transportation, it should be placed upward, afraid of moisture, carefully placed, and prevent heavy pressure;
c. It should be stored in a temperature range of -20℃～+55℃, relative humidity not exceeding 85%, no corrosive gas, cool, dry, well-ventilated and clean environment.



Warnings and Precautions

1. Warning
Warning: If the equipment is not inspected and maintained regularly, it may cause the equipment to fail and may endanger human health.
Warning: Before cleaning this product, the power must be turned off and the AC power must be disconnected.
Warning: Do not modify this equipment without the manufacturer's authorization.

2. Precautions
2.1 Please read the instructions before use and operate strictly in accordance with the instructions.
2.2 The product must be used by personnel who have undergone professional training and passed the assessment.
2.3 During use, closely observe the patient's reaction and adjust the parameters in time to achieve the best treatment effect.
2.4 Patients are not allowed to plug and unplug the pipeline without authorization.
2.5 Avoid sharing the socket with high-power surgical equipment or being too close to it, and avoid using this instrument in a strong electric field or strong magnetic field environment.
2.6 The syringe auxiliary propulsion device should not be used close to or stacked with other equipment to avoid mutual interference and affect the use.
2.7 Use the accessories and power adapter provided by the manufacturer. The use of accessories and power adapters other than those specified may increase the emission of the instrument or reduce the immunity.
2.8 When connecting the injection handle, check whether the injection handle and the filter tube are firmly connected.
2.9 The scrapping of this product and its accessories at the end of their service life should comply with local laws and regulations. If improperly handled, the electronic components in this product and its accessories will cause pollution to the environment.



Accessories and ordering information

The injection needles and syringes used with the product must have a medical device product registration certificate. You can purchase them directly from the syringe manufacturer or through our company.



Name	Specifications
Disposable sterile syringe	1ml
Disposable sterile syringe	3ml
Disposable sterile syringe	5ml
Disposable sterile injection needle	9P



Parts List



Name	Quantity	Unit
Host	1	Unit
Power Cord	1	Root
Adapter	1	pcs
Foot switch	1	pcs
Injection handle	1	pcs
Injection handle bracket	1	Set
Instruction manual	1	This



Logo Graphic Explanation





Production date and expiration date

Production date: See product label
Expiration date: 5 years



Company information

Registrant/Manufacturer name: Henan Yu Shiguang Medical Technology Co., Ltd.
Registrant/Manufacturer address: No. 402, 4th Floor, Building 13, No. 16, Jinzhan Street, High-tech Industrial Development Zone, Zhengzhou City, Henan Province
Manufacture address: No. 402, 4th Floor, Building 13, No. 16, Jinzhan Street, High-tech Industrial Development Zone, Zhengzhou City, Henan Province
Registrant/Manufacturer contact information: 18625570401
Medical device registration certificate number:
Product technical requirements number:
Production license number:
After-sales service unit: Henan Yu Shiguang Medical Technology Co., Ltd.
Instruction manual revision date: January 10, 2024



Circuit diagram, component list

If customers really need information such as the circuit diagram and component list of this product, they can contact the manufacturer.
