OPT laser hair removal machine

 Product Introduction

Freezing-point hair removal is a laser-based selective photothermal mechanism that uses melanin as the targeted pigment group. The hair in the growth phase in the hair follicle is rich in melanin, so the hair in the growth phase will absorb the laser and fall off after being destroyed, causing the hair to leave the hair follicle, thereby achieving the effect of hair removal.



How laser hair removal works





Show results





Advantages

1. Low energy density, high average power.
Medical experts have found that when the temperature of the hair follicles rises to about 45-50℃, the hair follicles and the stem cells growing around the hair follicles will be destroyed and die, achieving the effect of hair removal.
2. Double pulse (preheating pulse + heating pulse)
The special heating mode ensures that while heating and destroying the hair follicles, high heat is not generated, which is more comfortable and safe!
3. The sliding technology represents comfort. Rapid sliding is a revolutionary breakthrough in freezing point hair removal lasers, ensuring that no hair is missed!
It avoids possible blind spots and omissions during the operation, and better ensures the effect.
4. The highest frequency, the largest energy, the largest spot, and the net effect is long-lasting!
5. Full ice feeling, more precise gentleness!
The temperature of the treatment probe is always kept at a cooling of 5℃, and the epidermal temperature of the treatment area is kept at a temperature of 25℃. The entire treatment process is carried out in an icy and refreshing enjoyment, truly achieving safety and painlessness!



Clinical Cases



Before	After



Before	After



Before	After



Before	After



Before	After



Before	After



Before	After



Table Parameters



OPT machine name	Hair removal equipment
Wavelength	420～1200 nanometers
Waveband	420/510/560/610/640～1200nm(standard)
	640～950nm,SHR(optional)
Spot size	10*40*45mm
IPL light energy	1～30J/cm2(10～60 levels)
Pulse duration	2-20 milliseconds
Pulse sequence	1-5 pulses
Delay time	5-60 milliseconds
Integrated skin cooling	-4~0℃
Operation interface	10.4-inch true color touch screen
Drive power	1,600W with mode
Working period	Continuous work 8~10 hours
Power supply	AC 110V or 230V
Cooling system	Advanced air & water cooling system
Dimensions	57×57×130CM
Weight	60KG





 Instrument introduction

The new generation of all-purpose photoelectric skin beauty instrument has more powerful treatment modes (OPT treatment mode and SHR rapid hair removal mode + laser mode + RF mode), fully intelligent control software, and more advanced hardware (German high-power OPT power supply technology, German imported sapphire , xenon lamp), an intelligent new generation of painless freezing point beauty system that integrates pulsed intense light hair removal, skin rejuvenation, pigmentation, and blood vessel treatment. Sapphire cooling technology greatly improves the safety, effectiveness and comfort of treatment. The efficacy of one OPT treatment is equivalent to 2-3 treatments with traditional techniques.
OPT beauty instrument is a more advanced OPT technology, using the three-dimensional technology concept: energy + pulse width + pulse waveform. OPT perfect pulse technology, this term may be unfamiliar to most peOPTe. In fact, OPT technology mainly makes great improvements in hardware. Its core is to accurately control each pulse, and the energy of each pulse is very small. It acts on our skin without attenuation, and it is precisely because of this that it forms perfect pulse energy, eliminating the technical drawbacks of the high energy peak of the first pulse of E-light and IPL and the attenuation of the sub-pulse energy one by one. This is OPT has a particularly significant improvement in the therapeutic effect, especially in freckle removal, hair removal, and skin rejuvenation.



Installation and preparation



After opening the instrument packaging box, it contains the main unit, treatment head, water adding funnel, etc. Place the main unit stably and you can see the butt joint of the instrument.	Insert the treatment head ID corresponding to the host interface ID.



Note: Please make sure the interface is aligned before applying force again. If you hear a "click" sound, it means the connection is good.

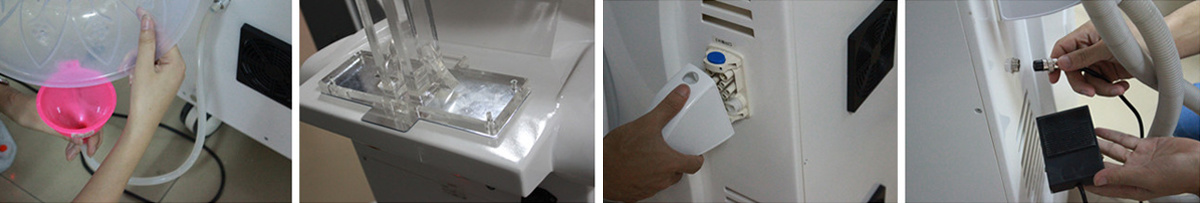

The next step is to add purified water or distilled water to the instrument (it is forbidden to add mineral water and start without water).
Unscrew the plug of the overflow port (as shown in the figure below). The overflow port is not sealed during daily startup and operation to ensure normal water circulation;





As shown in the picture above, fully connect one end of the water adding funnel to the water filling port of the instrument, and add the prepared pure water until the overflow port overflows, indicating that it is full. Then unplug the funnel and clean the surface of the instrument before connecting the power cord and getting ready to turn it on.



Instructions for use

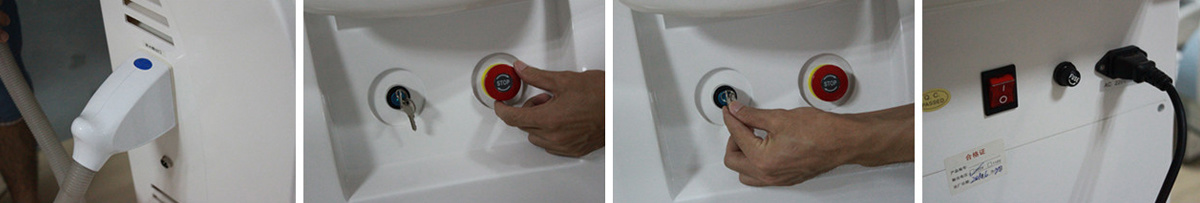

Everything is ready, connect the power cord (make sure the voltage matches), rotate according to the arrow shown on the red emergency switch on the instrument to pop up the switch (it is possible that during transportation, this knob was pressed and the whole machine could not supply power), and then turn the key to turn on the machine. , Note: After adding or changing water each time, please do not rush to operate. Make sure the instrument runs for several minutes and the water circulation is normal (it is best to turn it on for a few minutes, turn it off for one minute and then turn it on again, repeat 2-3 times) before entering the control interface.

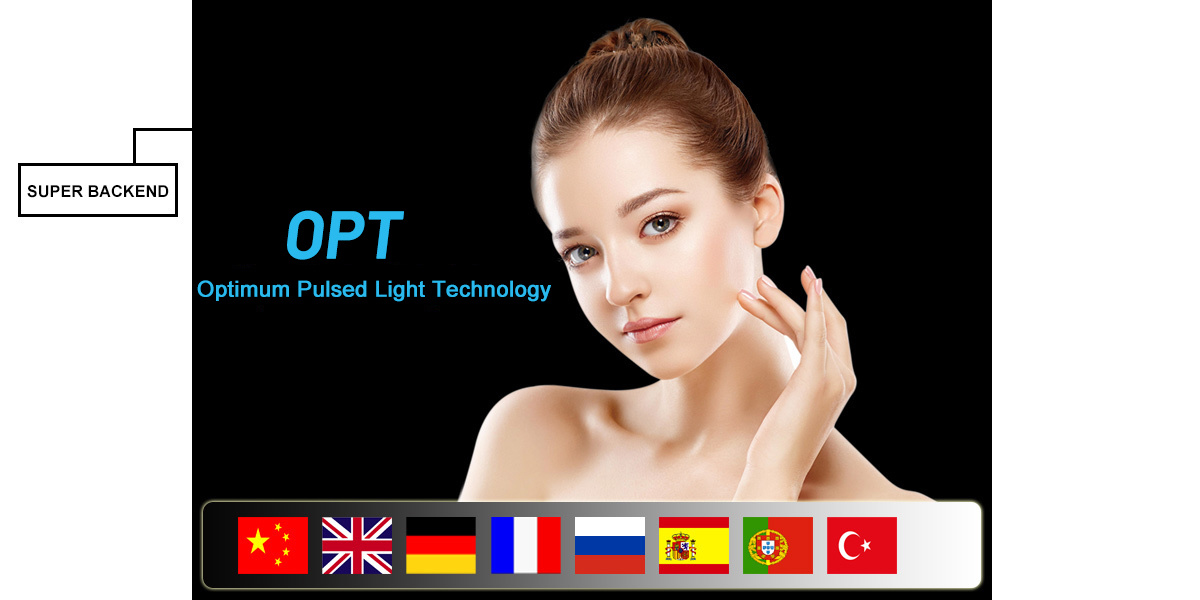

1.Startup interface

Turn on the main power switch of the device, and the boot interface will be displayed on the screen. As shown in Figure 1, the flags of the eight countries correspond to one language. Select a language and click the corresponding flag to enter the operating system selection interface.
Super backend: Press and hold the upper left corner for 5 seconds to enter the super backend interface.



Boot interface

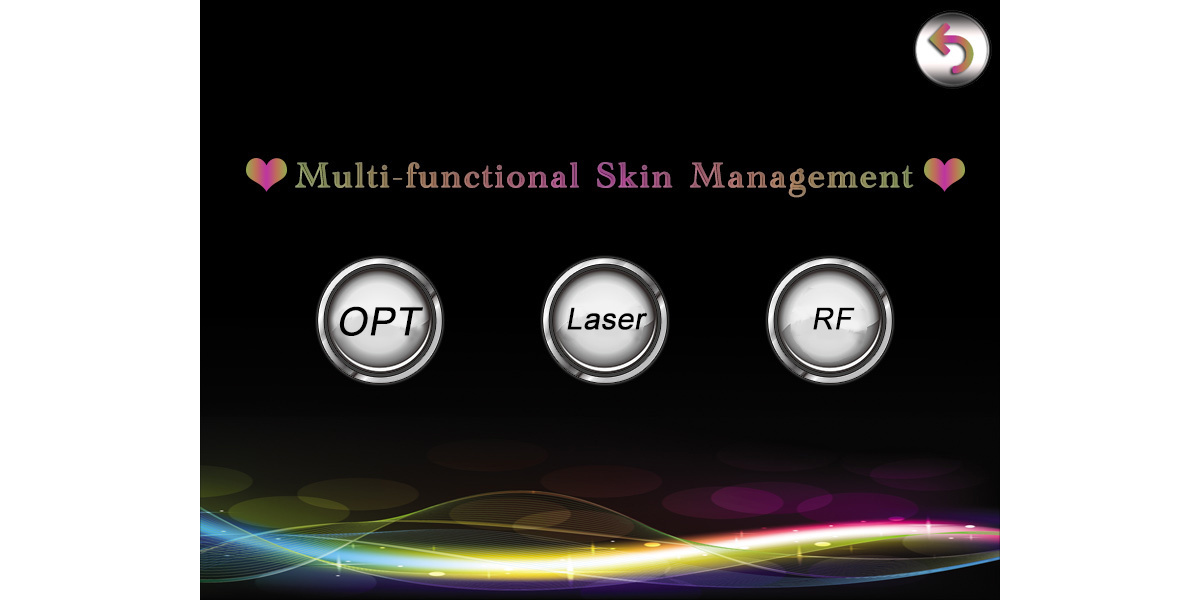

2. Operating system selection interface

Click on the corresponding operating system (as shown in the picture) to enter the corresponding treatment operation interface. Click "OPT" to enter the "OPT+SHR mode selection interface"; click "RF" to enter the "RF treatment interface"; click "LASER" to enter the "LASER treatment interface".



Operating system selection interface



3.OPT+SHR mode selection interface

Click on the corresponding treatment mode (as shown in Figure 3) to enter the OPT treatment operation interface, SHR treatment operation interface or system setting interface.



OPT+SHR mode selection interface

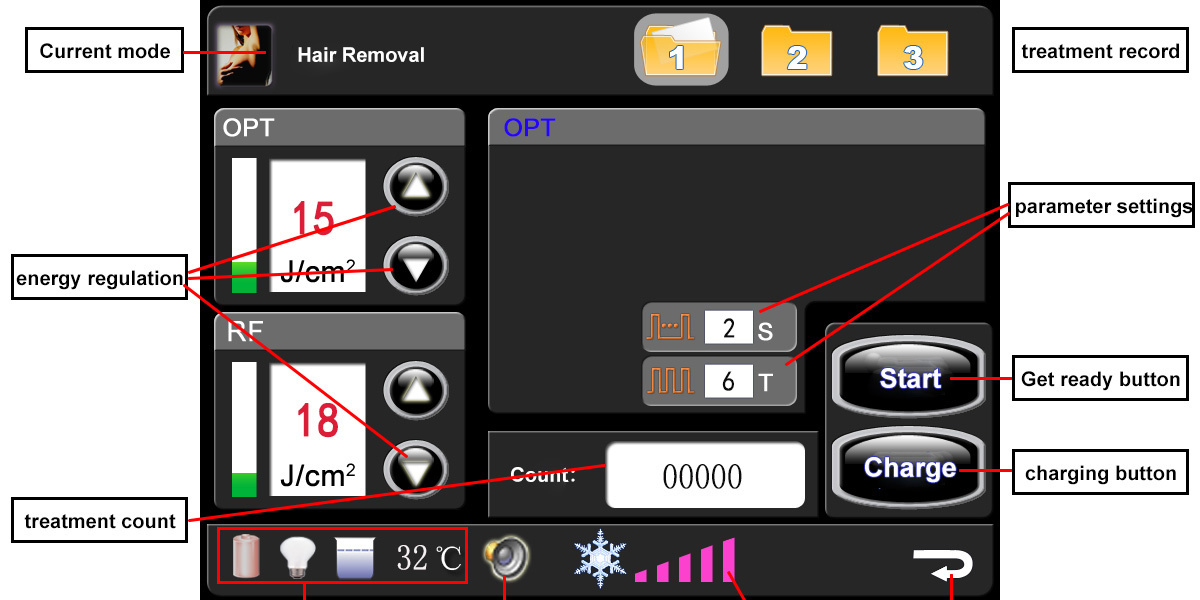

4.OPT treatment operation interface



Treatment interface



After entering the treatment interface, as shown in the picture. Press the "Start" and "Charge" buttons to perform pre-ignition and charging. The "Start" and "Charge" buttons will change color. If "Start" changes to the "Stop" page, pressing the "Stop" button will cancel the pre-ignition and charging.

Parameter setting: After entering the treatment interface, as shown in Figure 4. Press the "Start" and "Charge" keys to trigger the bald head. After the trigger is successful, the capacitor will be automatically charged. When charging is completed, the treatment state can be entered. If it is triggered three times in a row or the charging is unsuccessful, a 1-minute countdown will be displayed in the upper left corner. (No operation is possible during this time)
Status prompt: displays the current status of the device;
Sound switch: Click the icon to turn on or off the sound;
Counting prompt: Displays the number of times of light emission in the current treatment mode;
Treatment record: displays the current treatment record, and can record different treatment parameters to facilitate different treatments
If required, click to change the treatment record. There are 3 options. The record only saves the energy and OPT parameters of OPT. The parameters of RF are common;
OPT energy adjustment: adjust the output energy of the light head. During the adjustment process, the energy display window will display the current output energy value. The adjustment range is 10~50J/cm2. This setting can be adjusted directly during the treatment process, by the corresponding "△ or ▽ " key adjustment.
RF energy adjustment: adjust the output energy of RF. During the adjustment process, the energy display window will display the current output energy value. The adjustment range is 10~50J/cm2. This setting can be adjusted directly during the treatment process, by the corresponding "△ or ▽ " key adjustment.



Status prompt window (only indicates IPL status)



	Light color indicates the capacitor is not charged
	Red means full
	Water level and water temperature status. If the water level is low or the water temperature exceeds the set value, an alarm will occur. The following icon will flash.
	Cooling level switch, click directly to change, exit the operation interface and automatically turn off Closed, each level can be selected in a cycle.



Modify treatment parameters



	OPT pulse period): Click "Pulse Period" to adjust the pulse period. The period value increases by 1, and the range is 1-4S. It will automatically cycle after exceeding the maximum range.
	(Number of OPT pulses): Click "Number of pulses" to adjust the number of pulses. The pulse value increases by 1. The range is 1-6T. It will automatically cycle after exceeding the maximum range. At the same time, the pulse waveform above will change accordingly. The corresponding maximum output current will also change.



OPT-SHR mode treatment operation interface

Parameter Description:
Pulse width: the width of each pulse, ranging from 1.0-5.0ms, adjusted by the corresponding "△ or ▽" key.
Pulse frequency: the number of pulses in one second, the range is 1-10HZ, adjusted by the corresponding "△ or ▽" key.
Counting prompt: Displays the number of times of light emission in the current treatment mode.

In this mode, only the two parameters marked in the figure (pulse width, frequency) are different from OPT. For other buttons, please refer to the E-light mode treatment operation mode.





5.RF treatment interface:





RF energy adjustment: adjust the output energy of RF. During the adjustment process, the energy display window will display the current output energy value, ranging from 1000-8000ms. This setting can be adjusted directly during the treatment process by pressing the corresponding "△ or ▽" key. adjust.

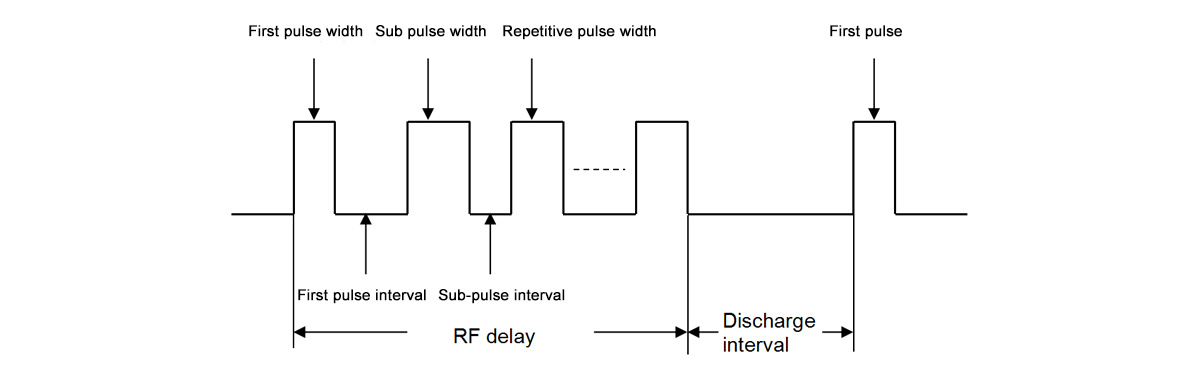

RF time adjustment: The time required for an internal pulse. During the adjustment process, the energy display window will display the current output energy value, ranging from 10-50J/cm2. This setting can be directly adjusted during the treatment process, and is determined by the corresponding "△ Or ▽" key to adjust.
Refrigeration adjustment: Click the refrigeration icon to control the level of refrigeration, and it will automatically close when exiting the operation interface.
Sound switch: Click the sound icon to turn the sound on or off.
Treatment: Press "Ready" to enter the treatment state. Please wait for a moment. After the bald head cools down, you can start treatment. The bald head begins to work according to the set treatment parameters.
Purpose: This instrument can make the skin delicate, white and tender, remove wrinkles and tighten the skin, reduce the hyperplasia of sebaceous glands, reduce abnormal keratinization of hair follicles and sebaceous glands, reduce inflammation, remove acne, etc. This beauty instrument can be used in beauty salons, fitness clubs, corporate departments, facial features departments, dermatology departments and other places.
During operation, the probe should be in complete contact with the body skin before operation (press the button switch).

Every time a person is changed for treatment, the energy setting on the interface must be returned to the minimum, and then the energy can be gradually increased according to each person's adaptability and sensitivity!



See the table for selection of working parameters



Probe action site	Probe code	It is recommended to select the energy range (PULSE state)
Eye	1# (small)	6～12
	2# (Large)	10～15
forehead	1# (small)	6～16
	2# (Large)	10～16
Face Cheeks	2# (Large)	10～16
Neck	2# (Large)	8～15
Waist and abdomen	2# (Large)	12～18
Buttocks	2# (Large)	12～18
Shoulder	2# (Large)	12～16
Hand Arm	2# (Large)	14～18
Legs	2# (Large)	14～18



It is prohibited to use this product for purposes other than specified functional care.



6.LASER mode selection interface:





Click on different modes to enter the corresponding mode treatment operation interface.



7.LASER treatment interface:





Mode display: The selected mode is as shown in the figure.
Energy adjustment: Adjust the output energy of the laser power supply. During the adjustment process, the energy display window will display the current output energy value. The adjustment range is 50~2000 mJ/cm2. This setting can be adjusted directly during the treatment process.
Frequency adjustment: Control the discharge frequency of the power supply. During the adjustment process, the frequency display window displays the current output pulse frequency. The adjustment range is 1~10 Hz. This setting can be adjusted directly during the treatment process.
Status prompt: Displays the current status of the device, including current water level, temperature, etc.

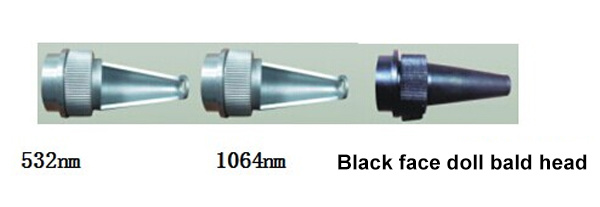

Work control: Press the "Start" button to trigger the bald head. After the trigger is successful, it will change from "Start" to "Stop"; press the "Charge" button, it will change from "Start" to "Stop".
The system enters the working state. When the work is completed, press the "Stop" button to end the work.
Treatment Count: The second line is the total laser plus picosecond count. The first line count is the current number of jobs.
Status display: water level and water temperature status. If the water level is low or the water temperature exceeds the set value, an alarm will occur.



8.LASER picosecond mode selection interface





Click on different modes to enter the corresponding mode treatment operation interface.

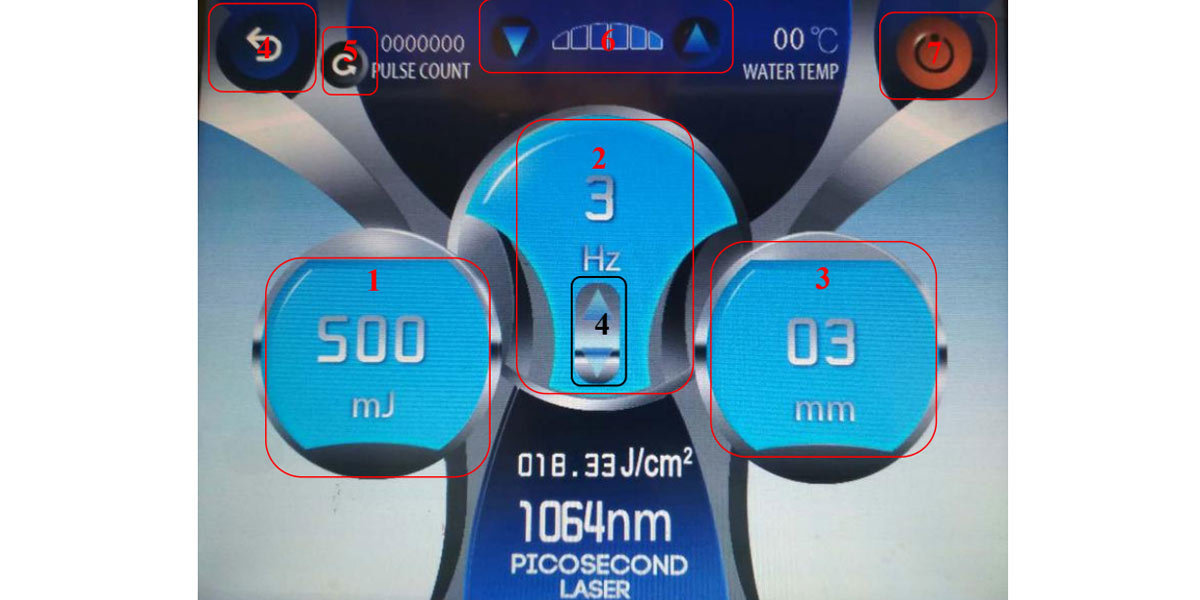

9.LASER picosecond treatment interface:





Mode display: The selected mode is as shown in the figure.
Energy adjustment: Adjust the output energy of the laser power supply. Click the energy value. The value turns red. To adjust, press the parameter adjustment button. During the process, the energy display window will display the current output energy value, with an adjustment range of 50~2000 mJ/cm2. This setting can be adjusted directly during the treatment process.
Frequency adjustment: Control the discharge frequency of the power supply. Click the energy value. The value turns red. To adjust, press the parameter adjustment button. During the adjustment process, the frequency display window displays the current output pulse frequency, with an adjustment range of 1~20 Hz. This setting can be adjusted directly during the treatment process.
Status prompt: Displays the current status of the device, including current water level, temperature, etc.
Work control: Press the "Ready" button to trigger the bald head. After the trigger is successful, the Ready button turns bright (green); the system enters the working state. When the work is completed, press the "Ready" button to end the work.
Treatment Count: The count is the current number of treatments.
Status display: water level and water temperature status. If the water level is low or the water temperature exceeds the set value, an alarm will occur. When the "Ready" key is pressed successfully, the light changes from blue to green, indicating that it is ready to enter the working state. When the light is emitted normally, the white color changes to green. When the temperature or water flow is abnormal, it changes from black to red.
Return button: Press the return button to return to the LASER picosecond mode selection interface.

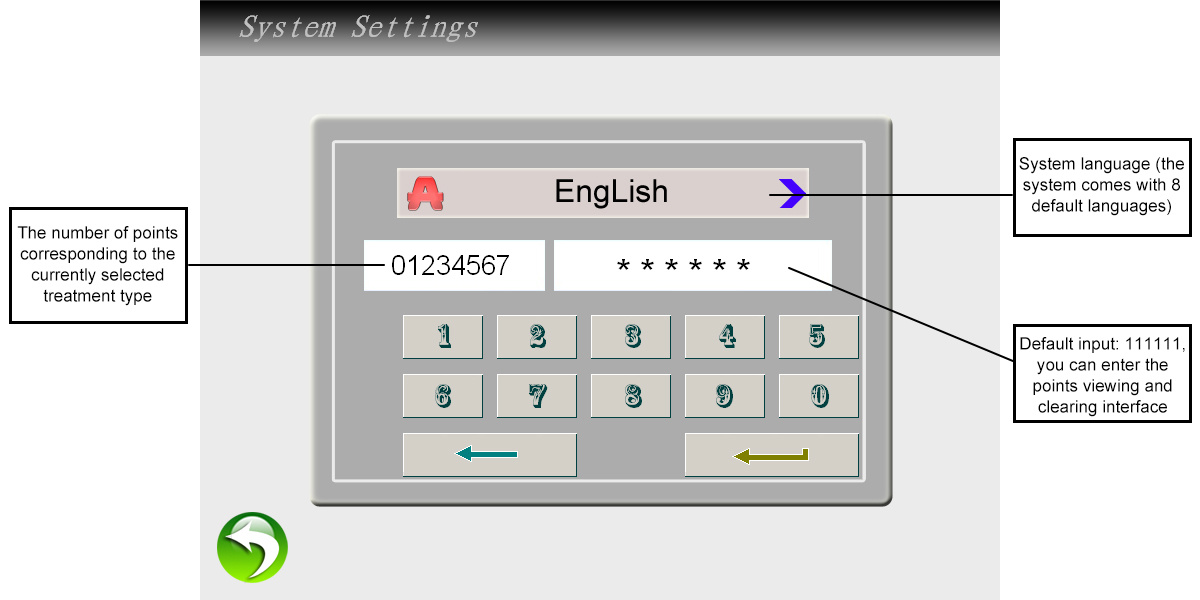

10. System setting interface



Language selection: Touch to switch languages.
Total count: total count of PDL 5 modes plus SHR mode.
Password: The original password is "050128". This password is used to clear the count of each mode. When designing a new password, the original password can still be used.
Temperature setting: used for users to set the upper limit of water temperature alarm;
Water flow detection side: Set whether to detect water level.
System reset: Restore a value to its original value.
laser:. It is the total count of Laser mode plus Laser picosecond mode.
Mode selection: Switch between Laser mode and Laser picosecond mode. When the selection mode is "1", it is Laser picosecond mode. When the selection mode is "2", it is Laser mode.



11. Ultra-fast background password interface:



Password interface



Enter the password 050128 to enter the super background setting interface.



12. Super background setting interface:



System setting interface



The function of the super background interface is to choose to turn on or off the OPT, Laser, and RF functions, and to switch between Handle Single and Handle Double.



Treatment Instructions



Use:
1. Hair removal: permanent hair removal, unsightly hair (hair in the growth phase) all over the body, including small hair with darker colors.
2. Freckle removal: Remove freckles, sun spots, age spots, acne marks, and facial blemishes.
3. Skin rejuvenation: Improve enlarged pores, rough skin, and dull complexion, make the skin white, even in color, and restore skin elasticity.
4. Acne removal: acne, acne marks.
5. Improve telangiectasia: red blood streaks and facial flushing.



Operation skills:
1. During freckle treatment, the customer will feel a tingling sensation (within the customer's tolerance) and the skin will become slightly red, which will disappear on its own in about 10 minutes (it is normal for individual redness to last for about 30 minutes).
2. Dermal freckles and liver spots are the most difficult to treat in beauty treatments, and the treatment cycle is relatively long. OPT freckle removal is currently the most effective method for removing dermal freckles and liver spots. Combined with oxygen injection treatment, 4-6 times can achieve ideal results.
3. After red blood filament treatment, the blood vessels will be clear and the color will turn purple, which is the best effect. If it is ensured that there is no reaction, red blood filament treatment can usually be cured in about 4 times.
4. Enlarged pores, blackheads, acne, and acne are generally caused by strong oil secretion and improper cleaning. Blackhead oil hatches 2-3 days after OPT and disappears in about 7 days.
5. When doing hair removal, there will be a slight tingling sensation in the armpit hair and hairline (within the tolerance of the customer) and a slight burning smell. There will be a slight tingling sensation in the hair removal on the upper and lower limbs. 3-4 times can achieve the effect of eliminating hair. That's because hair growth has three cycles, namely: growth phase-maturity phase-dormant phase. Only hair in the growth phase can be effectively removed, so hair removal requires 3-4 times.
6. Those with sensitive skin and dark complexion are prone to delayed reactions within 24-48 hours. Do not increase energy at will just because the reaction is not obvious at that time.
7. During treatment, the spots are arranged in order such that each spot presses one third of the other spot.
8. The parameters or energy must be adjusted at any time for areas with heavier spots and darker skin. When treating the forehead or corners of the mouth, the parameters and energy must be fine-tuned downwards.
9. During treatment, keep asking the client how they feel and adjust the energy appropriately.
10. After treatment, apply the cold gel on the face for 20-30 minutes and wash it off if there is no discomfort.



Contraindications:
a. Do not use it on the abdomen during menstruation or pregnant women;
b. It is prohibited to use it on the ears, nose, eyeballs, throat and other parts;
c. Patients with heart disease, hypertension, infectious skin diseases and those who are sensitive to electric current are prohibited from using it;
d. It is prohibited to use around parts of the body that are embedded in metal, plastic, silicon, etc.;
e. It is prohibited to use it around hearing aids, pacemakers, artificial hearts and other company electronic devices embedded in the body;
f. Children under 12 years old.



Laser operating instructions:
Instrument function
1. Instant skin rejuvenation, instant radiance 2. Whitening, removing yellow spots, ending brown spots
3. Zero pores, tighten skin 4. Eliminate blackheads, inhibit acne
5. Wash your eyebrows and remove moles, three times. 6. Remove tattoos, and change your face three times.
7. Three to six times, for two years



Suitable for skin types:
1. Problematic skin with enlarged pores 2. Acne-prone skin with excessive oil secretion
3. Dark yellow and dull skin 4. Sagging skin and fine lines all over the face
5. Rough skin 6. Superficial acne scars

Product advantages:
It can be said that the "Black Face Doll" laser skin beautification can effectively control the secretion of sebaceous glands, reduce inflammation and sterilization, inhibit the activity of acne propionibacteria, stimulate pore shrinkage, and can also whiten. Since the skin softening laser does not directly act on the skin, there is no need to worry about the skin. Darkening and burning of skin. It is a black carbon skin resurfacing technique that you still want to do after you have done it.
1. Safe and non-invasive: Photoexplosion whitening is a non-invasive beauty technology that does not cause scabs, bleeding, pain, and has no adverse reactions or side effects.
2. Simple and easy to use: Simple operation, no repeated training required.
3. High cost performance: Applicable to a wide range of peOPTe, the instrument is reliable and durable, ensuring 1 million beam launches, and long working hours without stopping the machine midway.



Effect:
Whitening and beautiful skin: fade spots, improve skin tone, remove yellowing and darkening, resist aging and rejuvenate skin, increase skin elasticity and luster
Improve skin texture: Firm and lift, shrink pores, remove blackheads and acne, fade acne marks, improve oil secretion
Deep cleansing: Let your hair suddenly open, so that the essence and skin care products you apply on daily basis are truly absorbed.

Technical principle:
Black-faced doll: Toner as an exogenous artificial color base
Black-faced doll: Toner has excellent absorption properties for 1064 nm laser
Black-faced doll: Cell damage is limited to tissues closely adjacent to the toner, and has little effect on non-target tissues. By applying medical-grade nano-charcoal powder to the face, allowing it to penetrate into the pores, the charcoal powder particles are then blasted with a laser to shatter the dirt and cutin on the epidermis; the high-heat energy generated is transmitted to the dermis, fully stimulating skin cells. Renewal and vitality, stimulate the repair of collagen fibers and elastic fibers, use the body's natural repair function to initiate the orderly deposition and arrangement of new collagen, thereby instantly removing fine lines and wrinkles, shrinking pores, smoothing the skin, and restoring skin Original elasticity.

Technical advantages:
[Safe and non-invasive]: non-invasive technology, no pain, no adverse reactions and side effects
[Remarkable curative effect]: whitening, rejuvenating, anti-aging, shrinking pores, delaying aging, effective immediately, lasting for a long time after the treatment, the effect is obvious.
[High cost performance]: Compared with injections and plastic surgery, the effect is certain, worry-free, risk-free, and easy to accept;



Working principle:
The "Black Face Doll" technique is a black carbon skin resurfacing technique used by many celebrities. When doing "black face doll" black carbon skin beautification, professional beauty therapists will first use long pulse width laser to heat the skin of the beauty seeker, and then apply a layer of black toner on the face of the beauty seeker. The fine carbon The powder particles will penetrate into the dermis along the large pores on warm skin. After 20 minutes, the beauty therapist will use a skin-softening laser to aim at the black toner and detonate it. The laser energy will be carried along the toner to the dermis and pigmented diseased tissue. The toner and the pigment groups in the skin will explode and crack instantly due to the rapid expansion of heat. The superficial pigment groups will turn into smoke and disappear. At the same time, the dirt on the pores and skin surface will also be taken away. The surrounding normal skin tissue will not cause any damage because it does not absorb the laser of a fixed wavelength.

Healing:
Step 1 of black face doll

1. Clean the face

2. Steam spray the face for 5-10 minutes
3. Skin anesthesia (optional)
Black-faced doll step 2

1. Toner particle blasting
2. Thermal effect (Purpose: Preheat to stimulate dermal collagen and dilute surface pigment)
Step 3 of black-faced doll: Apply a thick layer of carbon cream on the face
Step 4 for black-faced dolls: Use dry gauze to remove excess toner
Black Face Doll Step 5
1. Use the skin softening laser Q-switch mode to scan two to three times
2. Toner particle blasting (Purpose: To stimulate collagen again, the carbon powder particle blasting will shatter the dirt and cutin on the epidermis; the high heat energy it generates will be transmitted to the dermis, which will fully stimulate the renewal and vitality of skin cells and stimulate collagen. The repair of fibers and elastic fibers uses the body's natural repair function to initiate the orderly deposition and arrangement of new collagen, thereby achieving instant wrinkle removal, anti-inflammation and sterilization, decomposing pigments, shrinking pores, and texture repair, thereby comprehensively changing the quality of the skin. .)
Step 6 for black-faced dolls

1. Clean the face

2. Use a soothing mask to soothe, moisturize and calm
Step 7 for black-faced dolls 1. Moisturizing lotion 2. Use sunscreen regularly (SPF is at least 15)
Step 8 of treating black-faced dolls. Medical skin beauty care once a week, and provide efficient cosmeceutical care (Purpose: After treatment of black-faced dolls, the skin’s ability to absorb nutritional essence ingredients will be significantly enhanced compared to usual times, and the skin’s needs can be replenished in a timely manner. Nutrition will make the skin more moisturized and healthy).

Precautions:
1. Never look directly at the end exit of the pistol sight or any reflected laser beam.
2. Flammable and explosive anesthetic drugs, liquids, and gases (such as alcohol, ether, laughing gas, oxygen, etc.) should be kept away from the laser radiation area and protective measures should be taken.
3. Metal equipment can cause laser reflection. During surgery, you should avoid direct laser irradiation on these equipment and use non-reflective equipment as much as possible.
4. Avoid wearing watches, necklaces, bracelets and other jewelry that can reflect light during operation.
5. Patients must be provided with strict and effective eye protection—such as gauze covering, protective goggles, tarsal covering, etc.
6. Except for the target surface for adjusting the laser on the affected area to be treated, it is strictly prohibited to use the laser to irradiate other places; when moving the pistol during the treatment and placing the pistol after the treatment, the end exit of the pistol head must point to a safe place.
7. A laser radiation warning sign should be posted at the entrance of the laser treatment room, and personnel are strictly prohibited from entering or exiting during laser use.
8. The pigments of human tissues absorb laser differently, and the energy required for treatment should be selected from small to large.



Postoperative contraindications

1. No spicy food, seafood, pigmented food, smoking or alcohol;
2. Do not use irritating skin care products (such as soap, facial cleanser) within 3 days after treatment, and avoid using functional freckle removal products;
3. Pay attention to sun protection and use sunscreen (SPF20) or above;
4. It is recommended to use pure natural skin care products after surgery;
5. If there are scabs on the face, they cannot be peeled off by hand. They need to be metabolized by themselves;
6. Wash your face with cold water within 10 days, and do not use sauna or facial steaming. Facial care can be done after 10 days.



Should be dealt with:
Due to improper operation or the customer's own physical condition (darker, redder, more sensitive skin), delayed reactions may occur within 24-48 hours:

1. Light spot marks: apply light conditioning cream three times a day;
2. Blisters: Use a disposable needle to remove the exudate, clean with saline and then apply light conditioning cream three times a day;
3. Skin redness and swelling: If you are doing spot removal, you can use cold spray for 15-30 minutes until the skin is red (in serious cases, you can use cold compress directly), and then apply light conditioning cream: if you are doing skin rejuvenation and hair removal Customers can apply cold water, and then apply pure natural skin care products; the use time of light care products will be determined according to the customer’s skin repair condition. In the later stage, sun protection (more than 20 times), hydration, and moisturizing (pure natural and plant-based care and maintenance products ).

Taboo groups:
1. Pregnant women and peOPTe with photosensitivity
2. Those who have recently taken allergic foods or drugs (such as celery, vitamin A acid, etc.)
3. Patients with pacemakers or defibrillators in their bodies
4. Patients with damaged skin at the treatment site 5. Patients with diabetes, heart disease, hypertension, and epilepsy
6. Patients suspected of having skin cancer



Routine maintenance

1. After each use, the bald head should be cleaned and put back on the hook.
2. Each instrument must be fully filled with water. Change the water every 20-30 days. Drain the water in the water tank and then add water.
3. When the instrument is just filled with water or turned on after changing the water, you need to turn the key on and off 3-5 times before adjusting the parameters.
4. After each startup, wait for the water in the water tank to circulate for one minute before pressing the ready button (turning on the light).
5. It is forbidden to clean and disinfect the bald head and treatment area with alcohol and other flammable substances.
6. If your hair gets heated during operation, stop the machine immediately.
7. Cannot be used under strong magnetic fields.



Troubleshooting



Instrument failure	Fault causes and solutions
No power when booting	Connection line problem	Check whether the connecting cables of each part are normal
	Emergency switch pressed	Rotate in the direction of the switch arrow
	The fuse is burned out	Replace the fuse on the power cord
Cooling abnormality	The water temperature is too high	Change the water or shut down the machine to rest
	Poor water circulation	Check water volume and connection lines
	Semiconductor damage	Please contact the manufacturer
Abnormal conditions	If the situation is unclear, please contact the manufacturer in time!



Skin knowledge

Physiological structure of skin: The skin of an adult is about 1.5-2.0 square meters and is the largest organ of the human body. The skin is divided into three layers: epidermis, dermis, and subcutaneous tissue. The metabolic cycle of the skin is 28-45 days. Normal human skin is acidic.
Functions of the skin: The skin has physiological functions such as protection, secretion, excretion, temperature regulation, immunity, absorption, sensation, and response to visceral problems.
Pigments contained in the human body: The color of the skin is composed of four biological pigments: brown melanin, red oxyhemoglobin, blue reduced heme and yellow carotene. The color of the skin is mainly determined by melanin.
Composition of the melanin system: The melanin system is composed of melanosomes, melanin and tyrosinase in melanocytes. This system exists dynamically. It is highly sensitive to endogenous and exogenous stimuli, resulting in hyperpigmentation or depigmentation. Melanocytes are mainly found in the basal layer and hair bulb. There are also some melanocytes in the dermis, scattered between collagen fibers and elastic fibers.
Factors that affect skin color changes: genes, hormones (melanocyte-stimulating hormone, estrogen, etc.), sunlight, that is, ultraviolet rays, will cause skin pigmentation after 48 hours.
Classification of various types of spots
Pregnancy spots and butterfly spots: more common in young and middle-aged women, mainly growing on the cheeks and both sides of the nose; varying in size, yellow-brown flakes, clear edges or diffuse, symmetrical appearance; caused by pregnancy rings and oral contraceptives Endocrine disorders have no symptoms of physical discomfort and occur unknowingly.
Sun spots: They appear on the whole face or in parts of the face; they vary in size, are irregular in shape, are tan or brown in color, and have unclear edges; they are caused by excessive exposure to ultraviolet rays and have no symptoms of physical discomfort.
Freckles: They appear on the whole face, especially on both sides of the nose; they are about the size of rice grains, light brown, occasionally pure brown, with unclear edges; the cause is sun exposure or a family history of inheritance, and there are no symptoms of physical discomfort.
Liver spots: They mainly grow on the forehead and the inner side of the eyes; they are variable in size, appear in pure brown or brown flakes, often appear symmetrically, and have unclear edges; symptoms include upset and irritability, bitter taste, distended ribs, menstrual dysmenorrhea and breast distension and pain. There are purple blood clots in menstrual blood; the cause is stagnation of liver qi, stagnation of qi and facial blood stasis.
Spleen spots: They mainly grow on the nose and the inside of the eyes; they vary in size and are yellow-brown flakes; the symptoms are sallow complexion, loss of appetite, fatigue and heavy head, insomnia and dreams, and marks on the edges of the tongue; the cause is abnormal spleen transportation and transformation. Qi and blood cannot be warm.
Kidney spots: Mainly grow on the forehead and eyes; vary in size, are dark brown or blue-gray oval, have clear edges, and appear symmetrically; symptoms include dark complexion, soreness of waist and knees, cold hands and feet, dizziness, tinnitus, and chills; The cause is internal heat caused by kidney yin deficiency.
Unexplained spots: scattered all over the face; varying in size, yellowish-brown and uneven in color, irregular in shape, unclear edges, and asymmetrical; the cause is unknown, and there may be symptoms of physical discomfort.
Overview  of red blood filaments: A skin disease caused by telangiectasia, resulting in red or purple spots, spots, and linear lesions, often with no symptoms. Mostly inherited. Part of it is caused by secondary conditions such as plateaus, cold zones, or the use of chemical peels and peels.
Causes of wrinkles: As age increases, metabolism slows down, the skin is dehydrated, and collagen is lost, resulting in false wrinkles. The lack of elastic fibers and collagen fibers breaks to form stereotyped wrinkles, and the skin is sagging and sagging.
Overview of hair: The growth of hair itself is divided into three cycles: 1, growth phase 2, maturity phase 3, and dormant phase. Treatment during the hair growth phase will have the best effect.



Outer box size 57x55x130 Weight: 56 kg



Instructions for use

Note:

1. Open the water inlet and air outlet before starting the machine, and tighten the water outlet. 2. Use a funnel to add pure water from the water inlet until water overflows from the air outlet, which proves that the machine is full. Add water once a week and change the water once a month (open the bottom water outlet when changing the water, and the water will automatically drain out). The machine will burn out if it lacks water, remember! (After adding water, there is no need to cover the water inlet and air outlet with nuts to maintain ventilation circulation)



Safety Precautions

1. Transportation safety
This operating system contains precision instruments. Users should try not to move this machine over long distances. Before transporting the machine, the water in the instrument must be drained, and the shock-absorbing packaging provided by the original manufacturer must be used during transportation, otherwise it may cause the optical system to be out of alignment and affect energy output.

2. Electrical safety
This operating system uses a single-phase 220V power supply, and the maximum output current is not more than 5A.
In order to extend the service life of the machine and reduce the impact of power grid fluctuations on this machine, users need to use a 1000W voltage stabilizer.

3. Operation safety
1. Reflective materials such as watches, mirrors, jewelry, etc. are prohibited in the treatment room

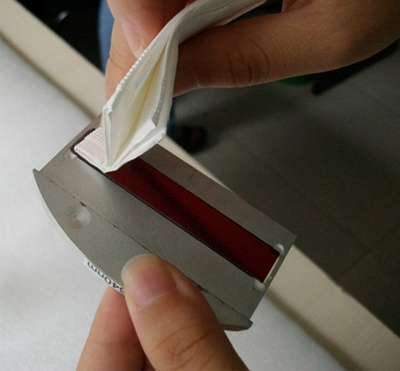

2. Keep the light guide system clean at all times and ensure that the condensing agent does not contaminate the light guide system

4. System safety device
1. In order to ensure safety in use, this product strictly implements the (E-light) enterprise standard
2. The water must be filled before starting the machine, otherwise the treatment gun will burn
3. Check whether the circuit is safe immediately after starting the machine, and the circuit should be checked continuously during the entire operation process
4. After each start-up, fire two empty guns first, and then treat on the skin.



Contraindications

1. Those with photosensitivity
2. Those who have recently taken photosensitizing foods or drugs (such as celery, isotretinoin, etc.)
3. Patients with pacemakers or defibrillators
4. Patients with damaged skin at the treatment site
5. Pregnant women, patients with diabetes, heart disease, hypertension, epilepsy
6. Skin cancer patients
7. Fragile skin that has been exposed to the sun recently



Therapeutic principle and treatment range of OPT light:

Acne removal, acne removal principle

Use short-wave strong light to kill Propionibacterium acnes, and use red light, infrared light and radio frequency current to reduce the activity of sebaceous glands while eliminating pigmentation, stimulate deep collagen proliferation, and achieve good acne treatment effect.



Safety
Because the composite energy of IPL and RF acts at different depths, the treatment does not rely on a single energy, so the safety of the treatment is guaranteed



Whitening and rejuvenation, red blood streak removal, freckle removal principle

Simple IPL technology and IPL and RF combined technology provide two types of equipment principles: using IPL technology alone, using the principle of selective absorption and thermal decomposition of hemoglobin and pigment groups to heat up the target tissue, and without damaging normal skin tissue, especially epidermal tissue, the target tissue is necrotic to achieve the treatment purpose.
Use IPL and RF combined technology: use the skin tissue's selective absorption of strong light to cause the impedance difference between the target tissue and normal skin tissue. Under low light energy conditions, strengthen the absorption of radio frequency current by the target tissue, and rely on radio frequency to achieve the treatment effect.



Safety
In the treatment of epidermal spots, removal of fine red blood streaks and whitening and tendering, the use of simple IPL technology and IPL and RF combined technology are both safe, but in the treatment of deep spots and thicker red blood streaks, simple IPL technology has little effect under the premise of ensuring safety, while the safety of IPL and RF combined technology is more obvious in clinical practice.



Principle of wrinkle removal, face lifting and lifting
Using IPL and RF combined technology, that is, E-light uses electromagnetic waves and the thermal effect of IPL to provide an ideal temperature rise to stimulate the dermis, act on the entire dermis and connective tissue, and stimulate collagen fibers at different depths, thereby achieving the effects of wrinkle removal, facial lifting and non-invasive face lifting.



Safety
Because it mainly uses radio frequency current that penetrates 15mm under the skin to act on the dermis and has little effect on the epidermis, the main energy acts on the target tissue, so it is very safe.



Principle of permanent hair removal

OPT light hair removal is the latest long-term hair removal technology: the filtered strong pulsed light is easily absorbed by the melanin in the hair and hair follicles and converted into heat energy, which rapidly heats up the hair shaft and hair follicles. When the temperature reaches above 60°C, it causes hair splitting, hair follicle degeneration, hair papilla destruction, hair growth cell death, and ultimately causes the original hair to fall off, and the growth of new hair is delayed, thinned, and lightened until it stops growing.

Safety
On the basis of using IPL technology, the energy of radio frequency with an action depth of 15mm under the skin is combined to make the melanocytes directly acting on the hair follicles absorb more energy, so it has a good effect on fine, light-colored, even golden and white hair.





OPT Full name: Optimum Pulsed Light Technology, called Perfect Pulsed Light Technology. This technology is optimized for the inherent shortcomings of IPL, mainly solving the problem of uneven energy release and difficult to control parameters in the treatment process of multi-pulse IPL.

It has the following advantages compared to traditional intense pulsed light.

1. OPT is a uniform square wave, eliminating the beginning part of the energy peak beyond the therapeutic energy, effectively controlling the whole process of treatment and improving safety.

2. To avoid the subsequent pulse energy attenuation can not reach the treatment energy problem, improve the effectiveness.

3. Each pulse or sub-pulse is a uniform square wave distribution, which has excellent reproducibility and repeatability of treatment.

The doctor can adjust the pulse width and energy to the maximum range, effectively avoid the thermal damage to the skin of the invalid spectrum, reduce the risk of burns, the treatment process is more moderate, safe and effective.



OPT light treatment range

1. Hair removal: permanent hair removal, unsightly hair all over the body (hair in the growth phase), including light-colored fine hair.
2. Spot removal: remove freckles, sun spots, age spots, acne marks, facial blemishes.
3. Skin rejuvenation: improve enlarged pores, rough skin, fine wrinkles, restore skin elasticity.
4. Treatment of capillary dilation: red blood streaks, facial flushing.
5. Improve dark complexion, make skin fair and even in color.



Parameters, advantages and features of the instrument

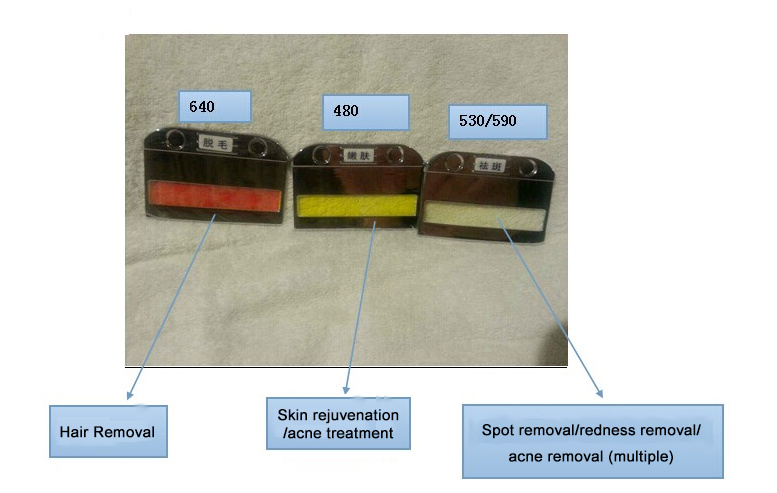

Filter	480nm,530nm,640nm
Operation screen	8.0-inch true color touch screen
First pulse width	1-20ms
Number of pulses	1-6
Pulse interval	1-40ms
Frequency	1,2,3.4.5
IPL energy	0-50J/cm2
Power	1800W
Spot size	12mm*30mm
Cooling system	Semiconductor refrigeration, closed cycle forced water cooling, air cooling heat exchange
Refrigeration	Level 5
Input power	220V, 10A, 50Hz



Advantages of the instrument
1. Short time: one treatment only takes 20-30 minutes
2. Non-invasive: no trauma to skin tissue
3. Painless: no anesthesia is required, only a slight burning sensation during treatment
4. No follow-up care is required: no special postoperative care is required, and makeup can be applied immediately after surgery
5. No side effects: no physical or chemical adverse reactions after treatment
6. Stable effect: equivalent to the effect of more than ten other methods
7. Safety: The OPT light system is a combination of high-tech optical medicine and human bioengineering technology, which has changed the previous wrinkle
and skin rejuvenation methods, deep wrinkle removal, high safety factor, and no pigmentation



Instrument features
1. Safety: OPT light can effectively avoid the common side effects of laser/strong light, and the difficulty of operation is greatly reduced
2. Efficacy: It is applicable to a wider range of customers, the immediate effect is more obvious, and the long-term effect is more lasting
3. Service: Due to the avoidance of various side effects, the treatment is more private and more comfortable
4. Equipment: Durable consumables and low cost of treatment



Instrument standard configuration



Power cord	One	Pedal	One	Photon gun	One	Filter	Three	Cold gel	Five bottles
Protective glasses	Two pairs	Power key	Two	Water injection tool	One	EGF	Two bottles



Power Cable	OPT Light Gun	Filters	Glasses (operator)	Cold Gel



Note

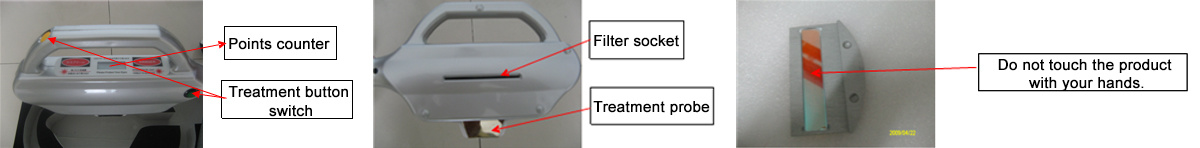

There are two buttons on the OPT light therapy gun, a yellow button and a green button. You can use either button during operation according to your personal usage habits.









1. When applying cold gel, try to apply it evenly, 3-5mm.
2. To protect the eyes, both the operator and the patient must wear special protective glasses and eye masks
3. When turning on the machine, turn the key to the right. Before turning on the machine, check whether the emergency stop switch is turned on. Turn it to the right gently to turn on the emergency stop switch. Use it in emergency situations and do not use it frequently to avoid damage to the instrument software.



Instrument Installation Instructions

Note: During the first installation, the service must be provided by an engineer and must not be handled by unqualified personnel.



Installation procedure:

1. Unpacking inspection: Open the outer packaging box of the instrument and check whether the instrument accessories match the packing list

2. Power supply installation: Plug the power supply into the "power interface" on the lower side of the instrument to ensure good contact. (A three-hole power socket with a ground wire must be used, and the voltage must meet the rated voltage of the instrument.)
3. Installation of the foot switch: Place the four-core notch of the foot switch facing up, align it with the interface, insert it and tighten it clockwise.

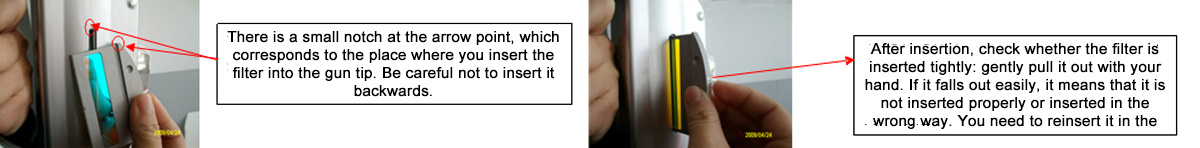

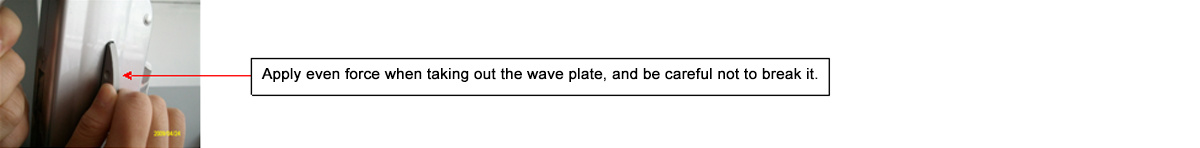

4. Installation of the filter: Select a suitable filter and insert it into the jack of the guide head. Be careful not to install it upside down.
5. Instrument water filling: First, unscrew the sealing cap on the overflow hole, and tighten the sealing cap on the drain hole; then insert the water filling bottle upside down into the water filling hole, squeeze the bottle body by hand, and inject water into it (prepare enough pure water or medical distilled water)

Automatic water filling:
(Prepare enough pure water or medical distilled water) Insert one end of the tube into the automatic water filling (drainage) port, and put the other end into the water, then turn on the power, turn on the machine, and press the green automatic water pumping button on the left side of the back. At this time, the screen of the instrument will not display. After the water is filled, it will stop automatically and the screen will display.

Automatic drainage:
Insert one end of the tube into the automatic drainage (water injection) port, and put the other end into the water, then turn on the power, turn on the machine, and press the green automatic pumping button on the right side of the back. At this time, the screen of the instrument will not display. After the water is drained, it will stop automatically. If water flows out of the automatic drainage (water injection) port, continue to press the green button on the left.

Note: Because this instrument is equipped with a super refrigeration system, after the first water addition, it is necessary to start the machine and run it for five minutes, and then add water to the instrument again in the shutdown state until water flows out of the overflow hole. When the instrument is used frequently, it is recommended to change the water once every 15 days.
If the gun head is found to be hot within 10 seconds before the first start of the new machine (there is air in the gun head causing the water flow to not circulate), please turn off the machine immediately.
Lift the gun head over your head and shake it three times, wait for the water in the gun to remain in the water tank before turning it on. If the gun head is still hot, you can repeat the previous action. Remember not to turn it on without water!



Operating procedures







Operation Instructions

1. Boot screen:
Note: The boot screen can be changed freely. Please call our company for specific methods.





2. Treatment mode selection interface





3. OPT light therapy interface





After entering the treatment mode selection interface, as shown in Figure . Press the "Ready" button to trigger the light head and automatically charge the capacitor. When charging is completed, you can enter the treatment state. Press the "Standby" button to turn off the light head and enter the standby state.
Light head status: Display the currently selected treatment mode;
Treatment parameters: The treatment parameters recorded in the treatment mode;
Status prompt: Display the current status of the device and the number of times the light head is illuminated this time;
Treatment record: Display the current treatment record (3 E-light treatment modes), which can record different treatment parameters, which is convenient for treating different patients. Click to change the treatment record. There are 3 options;
Refrigeration adjustment: used to adjust the refrigeration temperature of the treatment light head, which is divided into 5 adjustable levels. The more blue snowflakes, the stronger the refrigeration. When the blue snowflakes disappear, the refrigeration is turned off;
Return button: used to return to the treatment mode selection menu, unavailable when gray (treatment state);
IPL energy: adjust the light The output energy of the head. During the adjustment process, the energy display window will display the current output energy value. The adjustment range is 1~50J/cm2. This setting can be adjusted directly during the treatment process. Use the "△ or ▽" key to adjust. The "△" key is to increase, and the "▽" key is to decrease. Press and hold the "△ or ▽" key to quickly adjust the output energy;
RF energy: Adjust the output energy of RF. During the adjustment process, the energy display window will display the current output energy value. The adjustment range is 1~30. This setting can be adjusted directly during the treatment process. Use the "△ or ▽" key to adjust. The "△" key is to increase, and the "▽" key is to decrease. Press and hold the "△ or ▽" key to quickly adjust the output energy;



Pulse output diagram





Treatment
Press the "Ready" button (green) to trigger the laser head and automatically charge the capacitor. When charging is completed, you can enter the treatment state. Press the "Standby" button (red) to turn off the laser head and enter the standby state. After the power charging is completed, please wait for about 10 seconds, and the temperature of the laser head will drop before you can start the treatment. Press and hold the "Work Button" of the treatment laser head, and the laser head will start to work according to the set treatment parameters. When pressing the "Work Button" of the treatment laser head, the system will not respond to any key. You must release the "Work Button" of the treatment laser head before you can perform the operation. During the treatment, you can modify the treatment parameters. After the treatment is over, you can press the "Standby" button to exit the treatment program and turn off the laser head.
When performing RF treatment, be sure to ensure that the RF electrode is in good contact with the skin and apply cold gel. The energy of RF should be adjusted from low to high. The contact time between the electrode and the skin should not be too long to avoid scalding the skin. The treatment feeling of RF is mainly the heat felt inside the skin. If the needle-piercing sensation is too strong, it means that the cold gel is applied too little or the electrode is in poor contact with the skin. The cold gel should be reapplied or the electrode position should be adjusted.
The RF action time can be adjusted according to needs, but it should not be too long (300-900ms is recommended). If the action time is too short, it is not easy to produce effects, and if the action time is too long, it is easy to burn the skin.



OPT optical technical parameter adjustment table

1. For dark skin, IPL and RF parameters should be increased gradually from the lowest level.
2. For fair skin, IPL and RF parameters can be increased gradually from the lowest level until the customer feels the heat. If the customer feels too hot, please lower the IPL parameters. If the customer feels pain, please lower the RF parameters. After the facial, you can use a moisturizing mask, but remember not to expose to the sun.
3. Pay attention to adding water to the machine, add water once a week, and change the water once a month.
4. Remember to insert the filter, and the light gun operation will hurt the customer's skin





Project	Skin characteristics	IPL energy	RF energy	First pulse width	Number of pulses	Second pulse width	Sub-pulse width	Frequency	Discharge interval	RF delay parameters
480nm acne	Mild acne	15-30	7-15	3-5	3-5	2-4	1-3	2	15	250ms
530nm Remove red blood streaks	The thicker the blood vessel, the longer the first pulse	15-30	7-15	3-5	3-5	2-4	1-3	2	15	250
	The thinner the blood vessel, the shorter the first pulse	15-30	7-15	3-5	3-5	2-4	1-3	2	15	250
	Facial flushing, the longer the first pulse	15-30	7-15	3-5	3-5	2-4	1-3	2	15	250
530nm Skin rejuvenation	The darker the skin, the smaller the energy and the longer the interval	15-30	7-15	3-5	3-5	2-4	1-3	2	15	250
	The whiter the skin, the greater the energy and the shorter the interval	15-35	7-15	3-5	3-5	2-4	1-3	2	15	250
	The rougher the texture, the longer the first pulse.	15-30	7-15	3-5	4-6	2-4	1-3	2	15	250
480nm Skin rejuvenation	The lighter the texture roughness, the shorter the first pulse	15-35	7-15	3-5	4-6	2-4	1-3	2	15	250
	The thicker the skin, the better the skin quality, the greater the energy	15-35	7-15	3-5	3-5	2-4	1-3	2	15	250
	The thinner the skin, the worse the skin quality, and the smaller the energy	15-30	7-15	3-5	3-5	2-4	1-3	2	15	250
	Eye bags, wrinkles, large pores	15-25	7-15	3-5	4-6	2-4	1-3	2	15	250
530nm Spot removal	The darker the skin, the smaller the energy and the longer the interval	10-30	7-15	3-5	4-6	2-4	1-3	2	15	250
	Light spots, poor skin quality	15-35	7-15	3-5	4-6	2-4	1-3	2	15	250
	Deep spots, good skin quality	15-30	7-15	3-5	3-5	2-4	1-3	2	15	250
	Dark spots, poor skin quality	15-30	7-15	3-5	4-6	2-4	1-3	2	15	250
	Light spots, good skin quality	15-35	7-15	3-5	4-6	2-4	1-3	2	15	250
	The whiter the skin, the greater the energy and the shorter the interval	15-35	7-15	3-5	4-6	2-4	1-3	2	15	250
640nm Hair Removal	The darker and thicker the hair, the shorter the first pulse and the longer the interval	15-35	7-15	3-5	3-7	2-5	1-3	2	15	250
	The lighter and thinner the hair, the longer the first pulse and the shorter the interval	15-40	7-15	3-7	4-6	2-6	3-5	2	15	250



Note: The above parameters are for reference only. The energy for the first operation is slightly lower than the above energy. Perform a spot test before operation. It is recommended to start with 10 light energy. It can be increased or decreased gradually according to individual needs. Each increase or decrease should be moderate by 2-3. If the energy is insufficient during the later operation, the energy can be adjusted upwards according to the parameter table. Repeat at most twice for each part. If the energy is low, you can do it again. Remember that the electric energy should not exceed 10!!!





OPT hair removal interface





Use OPT hair removal mode: 640 inserts, energy 7 starts and gradually increases, usually around 15, pulse width 7MS, frequency 2P/s



Spot removal/acne removal/redness removal/hair removal





Skin Rejuvenation





OPT Hair Removal





Set interface





Precautions for operation
Observe the skin condition of the customer and the color depth of the spots, and adjust the parameters according to the customer's tolerance and skin metabolism. The energy is slightly lower than the parameters provided in the manual for the first time, so that the customer can adapt to the energy of the instrument. It is recommended to start with the light energy from 20 for the first treatment, and increase or decrease appropriately in units of 2-3. It is recommended to start with the electric energy from 15, and it can be done twice more. The second time, you can communicate and discuss with the customer first, and adjust the energy to a higher level after the customer is mentally prepared. And instruct postoperative care.



Post-operation care
1. Sun protection, strengthen hydration
2. Waterproof if crusting or blisters appear,
3. If redness and swelling occur, try to lower the epidermal temperature, and use cold spray, ice compress, etc.
4. Eat less photosensitive foods, such as: leeks, celery, soy sauce, papaya, etc.
5. During the treatment, it is forbidden to apply any functional or hormone-containing products



Postoperative precautions

1. Pay attention to sun protection: within one month after surgery, patients should use SPF15 sunscreen and sunscreen, and take umbrellas and sun hats when going out, and take sun protection measures. Because sun exposure may increase the regeneration rate of melanin and cause excessive pigmentation.
2. Makeup: Generally, do not put on makeup immediately after surgery to make the effect more obvious. It is best not to use chemical preparations for cosmetics used a few days after surgery, but use biological skin care products, and it is not advisable to use cosmetics containing powder. If redness, swelling and exudation occur in the treatment area, notify the doctor immediately and stop making up. Take some VitC and VitE drugs orally appropriately.

Generally speaking, after a course of treatment, the blemishes in the treatment area, such as red blood, sun spots, age spots, etc., are basically resolved, and the skin becomes delicate, shiny and elastic.
Note: Due to differences in personal physique, some customers may experience temporary discomfort, small blisters, pigmentation, redness, swelling, bruises, and it is recommended to apply ice packs for 30 minutes after surgery, and makeup can be used 5 days after treatment.



Maintenance and Repair

This equipment is mainly composed of precision optical instruments or electronic instruments. Its maintenance and repair should comply with the general regulations of precision optical instruments and electronic instruments. The cooling water in the water tank must be replaced every 3,000 points to prevent energy loss. It must be strictly prevented from being bumped, squeezed, and vibrated during storage and use. It is recommended to check whether there is splashing on the chip of the filter after each treatment. If so, be sure to wipe it with a clean, soft, good facial tissue (heart-to-heart handkerchief) that does not drop paper scraps. If it cannot be wiped clean, dip a little anhydrous alcohol and wipe it gently. In addition, the guide head of the E-light gun is also wiped in this way. As shown in the figure:



Step 1	Step 2	Step 3



Fault phenomenon and troubleshooting methods



Fault phenomenon	Cause analysis	Solution
The machine is not powered	The power supply is not input and is not supplied to the instrument. It may be 1) The fuse is blown 2) The emergency stop is not released 3) The electric key is not turned on	1) Replace the fuse 2) Release the emergency stop 3) Replace the electric key
After turning on the machine, the light head does not cool	1) The cooling power supply is damaged 2) The core plug is not in good contact 3) The semiconductor cooling is damaged 4) There is air in the gun head and the water circuit is not circulating	Contact the manufacturer for repair
The light head leaks	1) The internal screws of the light head are loose 2) The water pipe in the light head falls off 3) The lamp or crystal is broken	Remove the laser head and contact the manufacturer for repair
The light does not light up	1) The laser head is damaged 2) The front panel (controller) is damaged 3) The power supply is damaged	Call the manufacturer to determine the damaged parts and send them back for repair
No flash (no discharge)	1) The manual switch has poor contact 2) Operation error 3) The controller is broken 4) The power supply is broken 5) The gun head has been used for a certain number of times or has reached the end of its life and needs to be replaced with a new one	Call the manufacturer to determine the damaged parts and send them back for repair



Treatment course, symptoms, and effects

Hair removal: one course of treatment, 28 days/time 4-6 times 2-3 times have obvious effects Thick hair: 3 times Fine and soft hair: 5 times (legs: 1.5 hours, arms: 1.5 hours, armpits: 30 minutes)
Symptoms: redness
Effect: automatic shedding within a week

Skin rejuvenation: one course of treatment, 3 weeks/time 4-6 times 2-3 times have obvious effects (face: about 30 minutes)
Symptoms: slightly red
Effect: tender skin, fine pores
Preparation: deep cleansing, exfoliation, acne, blackheads

Acne removal, acne removal: 1-2 courses of treatment 3 weeks/time 4-6 times 2-3 times have obvious effects
Symptoms: redness (cold spray, ice compress)
Pre-surgery: deep cleansing

Freckle removal: 1-2 courses of treatment (such as 2 courses of treatment for severe melasma) 3-4 weeks once 4-6 times
Symptoms: After one application, the spots darken and become slightly red. Within a week, the spots lighten and fall off.



About Laser

1. After entering the LASER interface





Eyebrow removal/tattoo removal/freckle removal/birthmark removal [can choose to apply anesthetic to relieve pain]

After the treatment, you need to apply anti-inflammatory drugs such as repair factors and avoid contact with water







Remove (brown, brown, red and other colors)	532nm crystal  --long, square
Remove black base(black, blue, cyan and other basic colors)	1064nm crystal--Short, round
Use with carbon powder to make skin tender and white	Black-faced baby bald-Black head



Eyebrow washing:
It is recommended to shave eyebrows before surgery, and new eyebrows will grow 2 to 4 weeks after eyebrow washing. Hold the gun steadily, and keep the muzzle 1.5 to 2 cm away from the skin. The angle of the gun should not be too large. The light spots are evenly superimposed from the end of the eyebrow.

Eyeliner washing:
The eyelid plate must be used for eyeliner washing. The eyelid plate needs to be disinfected on both sides with 75% alcohol before use, and erythromycin eye ointment is applied on both sides. Insert it between the eyelid and the eyeball, and do not press the eyeball downward.
Eyeliner generally requires more than 2 treatments, and the treatment interval cannot be less than 1 and a half months.
Anesthetics can be used for those with severe pain.



Tattoo washing:
Similar to eyebrow washing, the muzzle is about 3 to 4 cm away from the skin. Reverse color may appear after the first treatment, and the reverse color part can be treated for the second time half an hour later.
During the treatment, the average number of swelling, blistering, bleeding, and deep redness of the skin is normal.



Notes:
During treatment, remember not to look directly at the laser source
After treatment, do not draw eyebrows or wash with water for 3-7 days
Pay attention to sun protection.
Do not eat spicy food, seafood and other irritating foods.
For those with heavy bleeding and severe swelling, oral anti-inflammatory drugs can be taken, or take drugs as prescribed by the doctor.
Apply erythromycin eye ointment or aloe vera cream that is beneficial to skin repair to the lesion site



Contraindications

The following groups are not suitable for using this instrument for care:
1. Pregnant women, people with high blood pressure, heart disease, and diabetes
2. People who are allergic to light are prohibited from doing it
3. Areas with open wounds
4. People who cannot avoid strong light in the near future
5. Breast augmentation is prohibited during menstruation
6. Those who are using functional products should stop for 1-3 months for care
7. Scars, birthmarks, and moles above the skin

Precautions after care
1. Do not use whitening and stimulating functional products
2. Do not wash your face with hot water or take a sauna within seven days
3. Do not eat irritating and pigmented foods such as chocolate and coffee within seven days, no smoking and drinking
4. Pay attention to sun protection
5. Do not scratch with your hands if there is scab





Working principle:
The "Black Face Doll" technique is a black carbon skin resurfacing technique used by many celebrities. When doing "black face doll" black carbon skin beautification, professional beauty therapists will first use long pulse width laser to heat the skin of the beauty seeker, and then apply a layer of black toner on the face of the beauty seeker. The fine carbon The powder particles will penetrate into the dermis along the large pores on warm skin. After 20 minutes, the beauty therapist will use a skin-softening laser to aim at the black toner and detonate it. The laser energy will be carried along the toner to the dermis and pigmented diseased tissue. The toner and the pigment groups in the skin will explode and crack instantly due to the rapid expansion of heat. The superficial pigment groups will turn into smoke and disappear. At the same time, the dirt on the pores and skin surface will also be taken away. The surrounding normal skin tissue will not cause any damage because it does not absorb the laser of a fixed wavelength.





Product maintenance and after-sales service

1. The main machine of this machine is under warranty for one year from the date of purchase (based on the factory date of the machine body). If there is any quality problem within three months, it will be repaired free of charge. If there is any problem after three months, the repair fee will be charged. The accessories are under warranty for three months. If there is any quality problem within one month, it will be repaired free of charge. After one month, the repair fee of parts will be charged. For other products that have expired, we can also be responsible for repairs and charge the cost of spare parts and consumables. Please contact our company for supplements or purchases.
2. No free warranty service is provided for the following faults caused by personal reasons.
Faults caused by unauthorized disassembly, modification of this product;
Faults caused by careless use of the product;
Faults caused by lack of reasonable maintenance; Faults caused by failure to follow the correct instructions for use.
