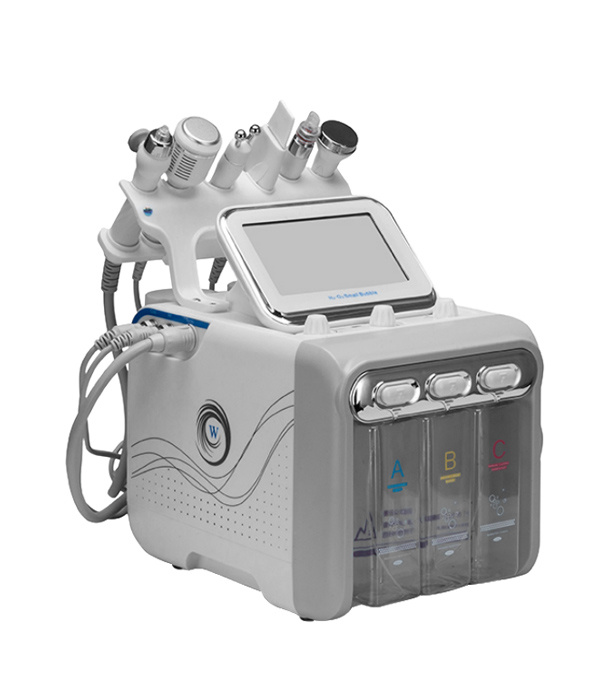

8 in1 Hydra Facial Machine

New upgrade 8-in-1



Generation of hydrogen and oxygen bubbles （2 accessories to choose from）		Second generation oxyhydrogen bubble （3 accessories to choose from）

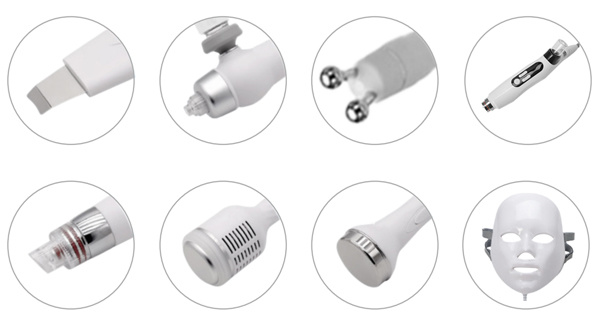

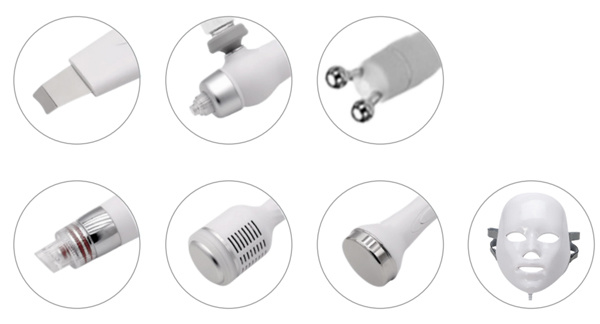

a.Generation of hydrogen and oxygen six heads: water mill, spray  pen, cold hammer, bipolar RF, ultrasonic, shovel skin. b.Generation hydrogen oxygen seven head: water mill, spray pen,  cold hammer, bipolar RF, ultrasonic, shovel skin, mask. c.Can do customized version of the function.		a、Second generation of hydrogen and oxygen six heads: water mill,  spray pen, cold hammer, nine pole RF, ultrasonic, shovel skin. b、Second generation oxyhydrogen seven: water mill, spray pen,  cold hammer, nine pole RF, ultrasonic, shovel skin, mask. c、Second generation oxyhydrogen eight head: water mill, spray pen,  cold hammer, nine pole RF, ultrasonic, shovel skin, mask, EMS water light. d、Can do customized version of the function. New upgrade eight in one more cost-effective (New features include colorful spectrum mask and EMS water light).



Use of water mill cleaning handle

1.1 Discharge makeup clean.

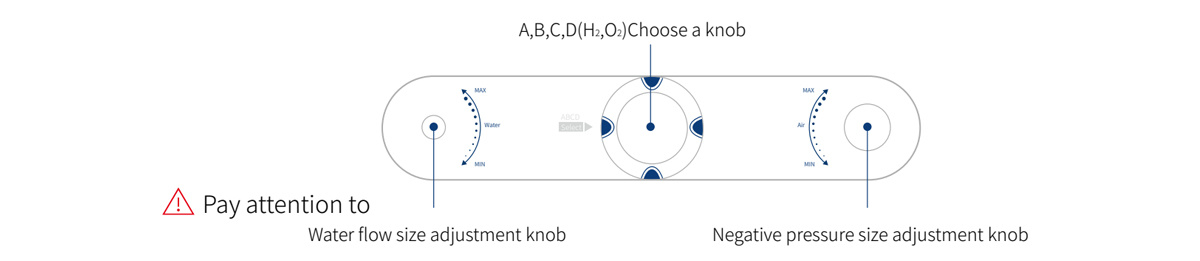

1.2 Select A suitable water grinding head according to the skin and turn the knob in front of the screen to the liquid bottle A, B, or D to use.
1.3 Adjust negative pressure suction and water flow to clean the whole face (10 minutes).

Pay attention to

When using D bottle (H2, O2), turn the knob to D, then press the H2, O2 button, wait for 3 minutes, until enough H2 is produced in the bottle, O2 can be used again.

1.4 After the whole face is cleaned, rotate the knob to the position of BOTTLE C to clean the water mill pipe. First, adjust the water yield to the maximum (rotating knob on the front of the instrument), adjust the suction to the maximum, open the instrument, cover the water mill head with the complimentary cover, and the instrument automatically cleans the pipe.





When the whole bottle of diluted liquid is used up, the warm water on bottles A, B, C and D must be washed again in the same way as the water mill pipe to prevent the pipe clogging.



2. The use of spray pen





2.1 Clean the parts that need to be operated;
2.2 Pour the diluted essence into the container on the spray pen;

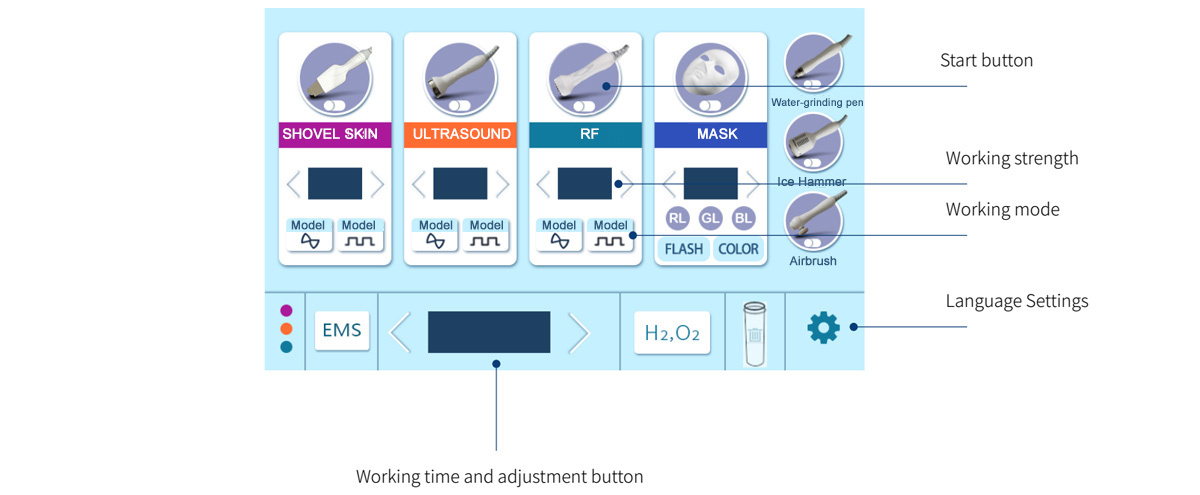

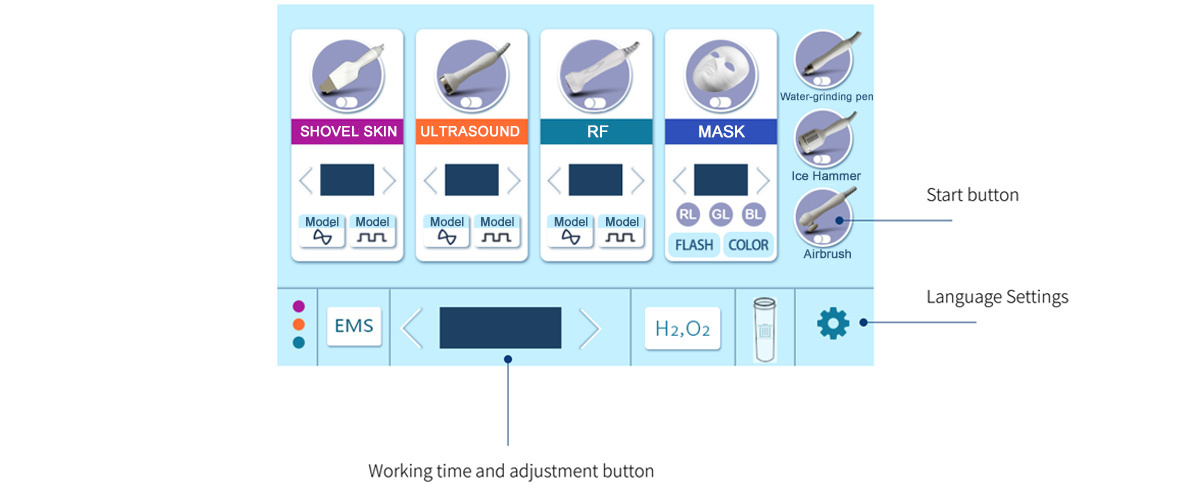

2.3 Press the spray pen button on the screen;
2.4 Spray pen to the operation part, press the handle on the key switch operation;



3. Use of cold hammer handle





3.1 Clean the parts that need to be operated;
3.2 Press start;
3.3 Operate the handle part in contact with the action part;



4. RF usage





1.4.1 Clean the parts that need to be operated;
1.4.2 Apply proper amount of nutritional gel to the active part;
1.4.3 Adjust working time, RF working intensity and mode;
1.4.4 Press the RF head against the applied part, click the RF icon on the screen or press the start button on the handle to start the RF function;
1.4.5 Circle according to the lines of the face, the neck needs the customer to lift the neck from the bottom to circle detoxification, each part of the operation time is 10-15 minutes.



5. Function of ultrasound





5.1 Adjust working time, ultrasonic working intensity, mode parameters;
5.2 Press the ultrasonic head close to the applied part, click the ultrasonic icon on the screen or press the start button on the handle to start the ultrasonic function;
5.3 Slowly pull along the contour line of the action part in a circle for 5-8 minutes;



6. Use of shovel skin





6.1 Clean the parts that need to be operated;
6.2 Adjust the working intensity, select the required working mode, press the start button to start the work;

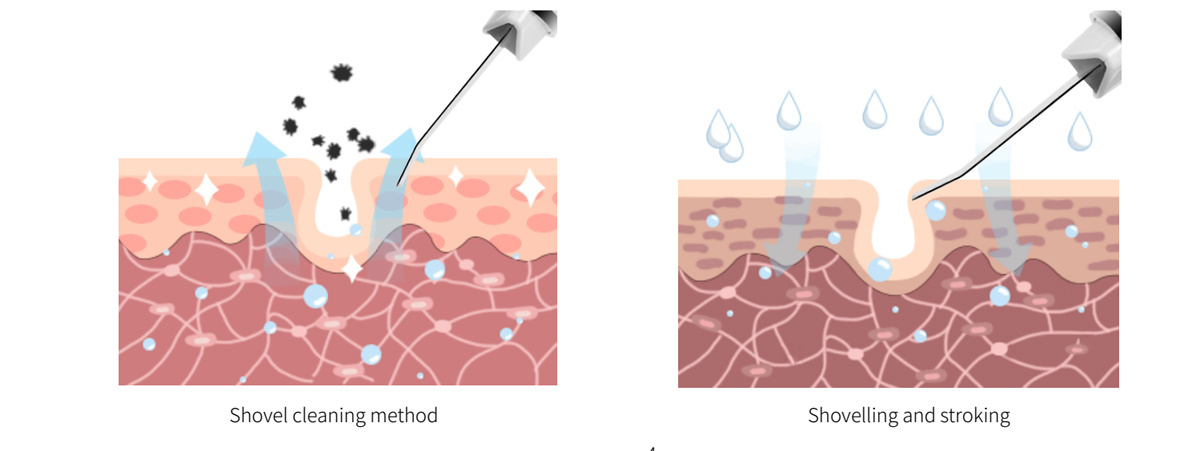

6.3 Cleaning method is to remove epidermal dirt operation method;
 1）Clean skin with facial cleanser;
 2）Disinfection shovel spare, will love to hold the stick in the hand;
 3）Apply enough pure water to the skin first;
 4）The shovel head is tilted 45℃ close to the skin from bottom to top, and the speed is moderate;
 5）Operation time is 20 minutes;

6.4 Stroke method is the operation method of lymphatic massage;
 1）Clean skin with facial cleanser;
 2）Disinfection shovel spare, will love to hold the stick in the hand;
 3）Apply enough rose water to your skin first;
 4）The spatula is flat against the skin and slides up according to the texture of the muscle;
 5）Operation time is 15 minutes;

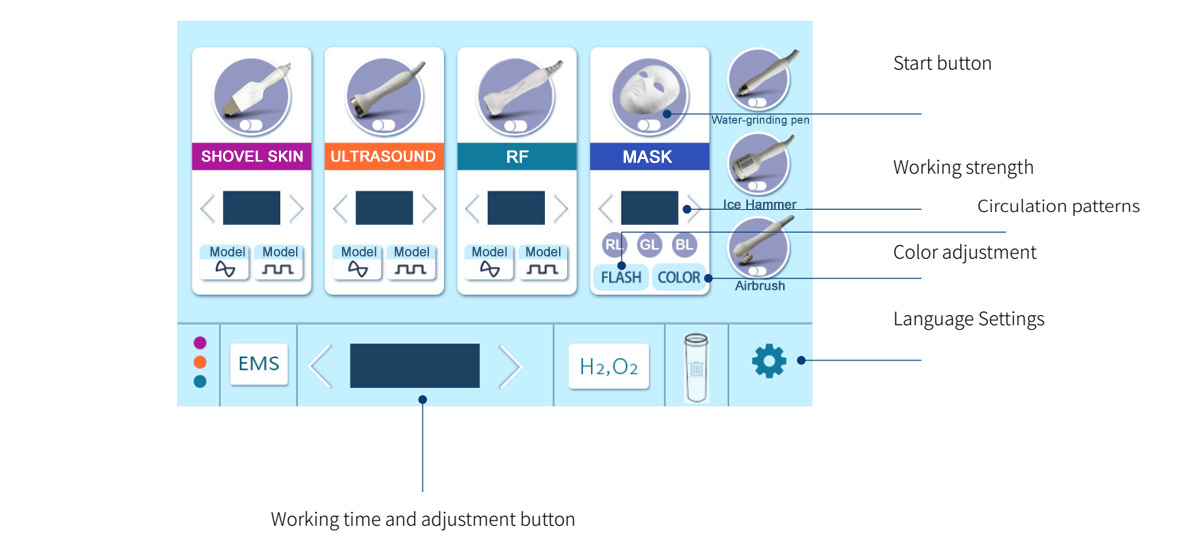

7. Use of face mask





● Red light（red)
Wavelength 630nm, known as "bioactive light", can improve cell activity, speed up metabolism and promote collagen formation, with whitening spots, tender skin wrinkle removal, increase skin elasticity, improve skin condition, repair damaged skin, narrow pores tight skin, anti-aging and anti-oxidation effect.
● blu-ray（blue)
Wavelength 470nm, can sterilization anti-inflammatory anti-inflammatory effect, can effectively destroy the bacteria propionibacterium without any damage to the skin tissue, and in a very short period of time to make acne inflammation significantly reduced to recovery. It has the function of removing acne and sores, sterilizing and reducing inflammation, repairing skin,
leaving no scars and pigment.
● Green light（green)
Wavelength 520nm, with neutralization, balance and calm use, can reduce skin oil secretion, balance the ratio of water and oil, effectively relieve mental tension, dredge lymph and discharge edema.
● Yellow light（yellow)
After special treatment of 590nm wavelength, improve cell oxygen exchange, replenish energy to skin cells, decompose pigment, promote lymphatic detoxification, improve skin roughness, wrinkles, treatment of skin redness, fever, ringworm, enhance immunity.
● Purple light（purple)
It is the dual-frequency light of red and blue light, which combines the effects of the two phototherapy, especially in the treatment of acne and acne marks has a particularly good effect and repair effect.
● The blue light
Can enhance cell energy step by step, have good promotion effect to metabolism.
● Laser light（The white light)
Penetrate deep layer of skin, accelerate metabolism of active tissue, decompose color spots, improve fine lines and loose skin.

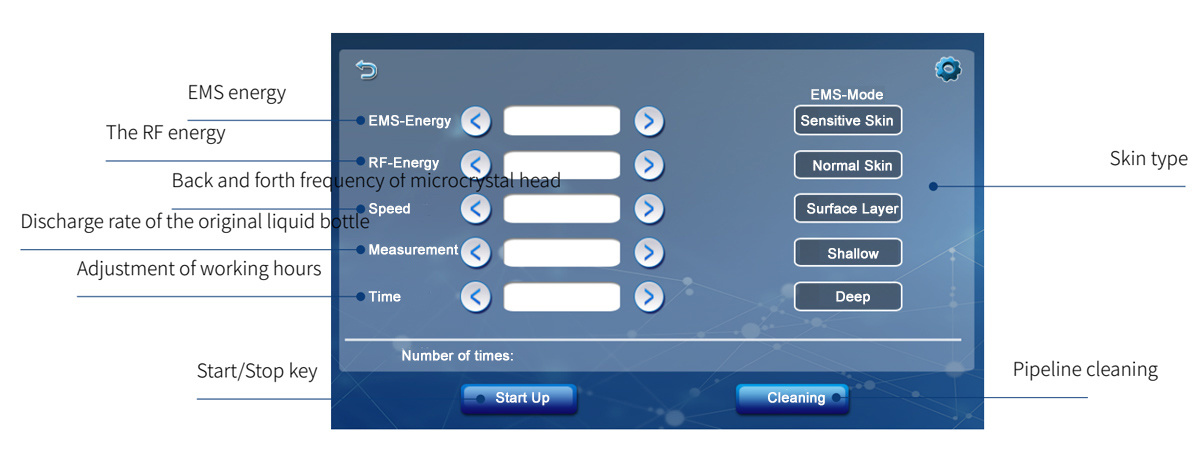

8. The use of the EMS







8.1 Click EMS, select skin sensitivity, adjust energy suggestion 2 first tone;
8.2 Click RF to adjust energy suggestion 2；
8.3 The speed is recommended to be adjusted to 5 (the faster the speed, the more obvious the prickling sensation), and the dose is recommended to be adjusted to 8 or 9;
8.4 Put on surgical gloves and wipe face twice with saline gauze;
8.5 Click the start button, tighten skin, use two disposable medical cotton handle vertical stick on the skin, from down to up according to skin texture to operation  (note: before the operation, need to long press button + handle adjusting dosage, the  instrument is normal fluid, again, when operating at any time pay attention to whether or not concentrate liquid bottle vertically, at any time change the handle direction)
8.6 Apply film (+ medical wound repair mask) for 20 minutes, remove film (use normal saline gauze block to clean)
8.7Operation instrument pipe end is clean, start the instrument the remaining products will be the pipe net, then put the approximately 40 ℃ warm water into liquid bottle, device to handle, click the start button, click the icon to enter to clean interface, click the clean, put the instrument for pipeline automatic cleaning, the concentrate of warm water bottle clean
finished, click done

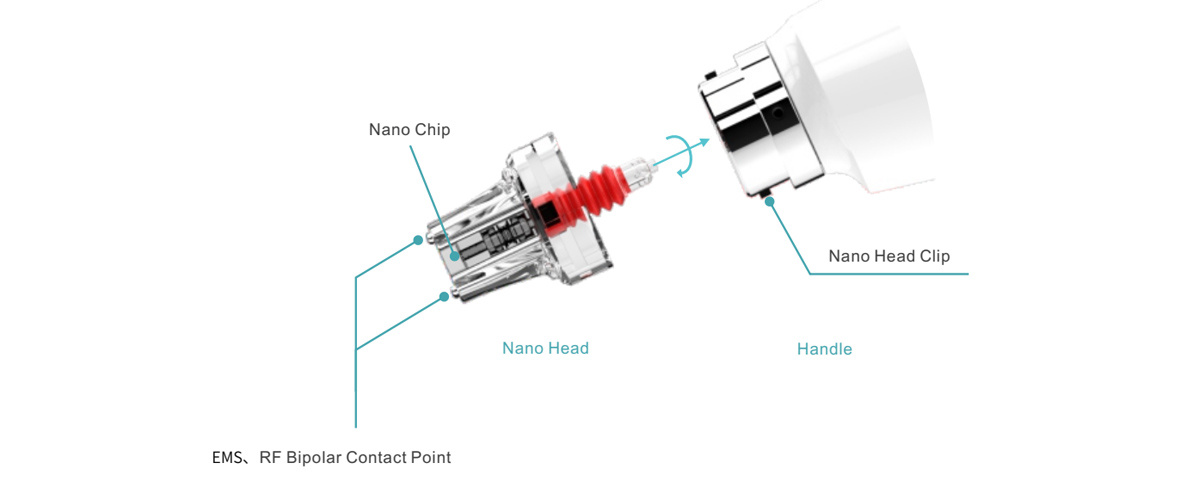

8.2 EMS

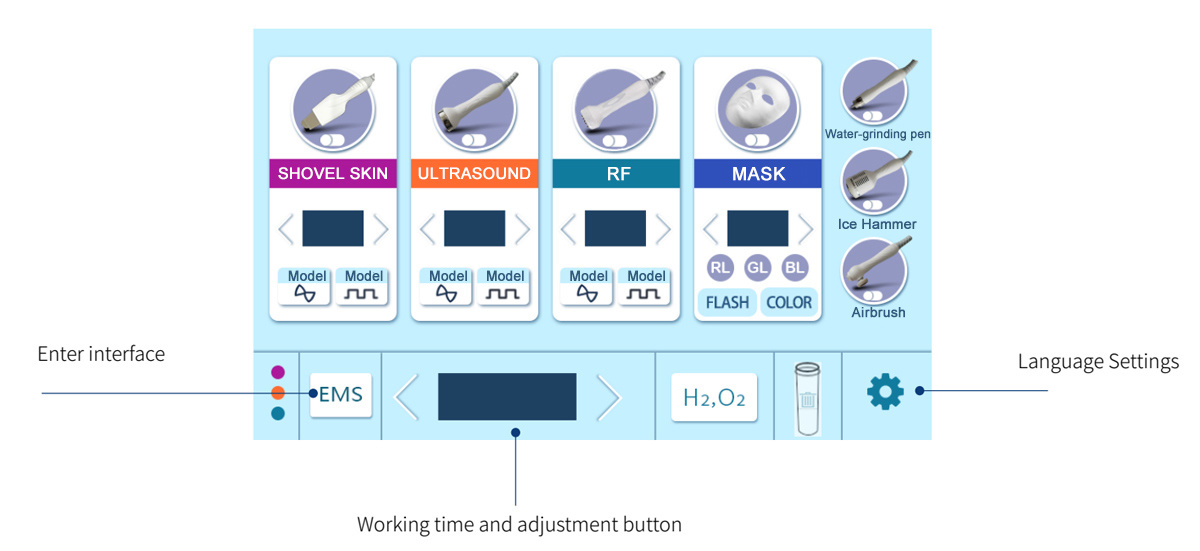

9. Instrument use





9.1 Instrument Installation Instructions
9.3 Carefully remove the instrument accessories from the packing case, keep the packing materials for future transportation or storage, and check the accessories according to the packing list
9.4 Check for any mechanical damage

Pay attention to

If you have any questions, contact our sales department or agents immediately

9.5 The instrument should be placed in a clean and ventilated room with a temperature of 5 ° C to 40 ° C and no more than 80%, avoiding direct sunlight. And make sure that Air vents
are not blocked and ensure at least 5cm clearance around the instrument
9.6 Insert the accessories into the corresponding interfaces according to the text and picture information prompts of the output interfaces on both sides of the instrument, and then place the accessories neatly on the accessories rack.

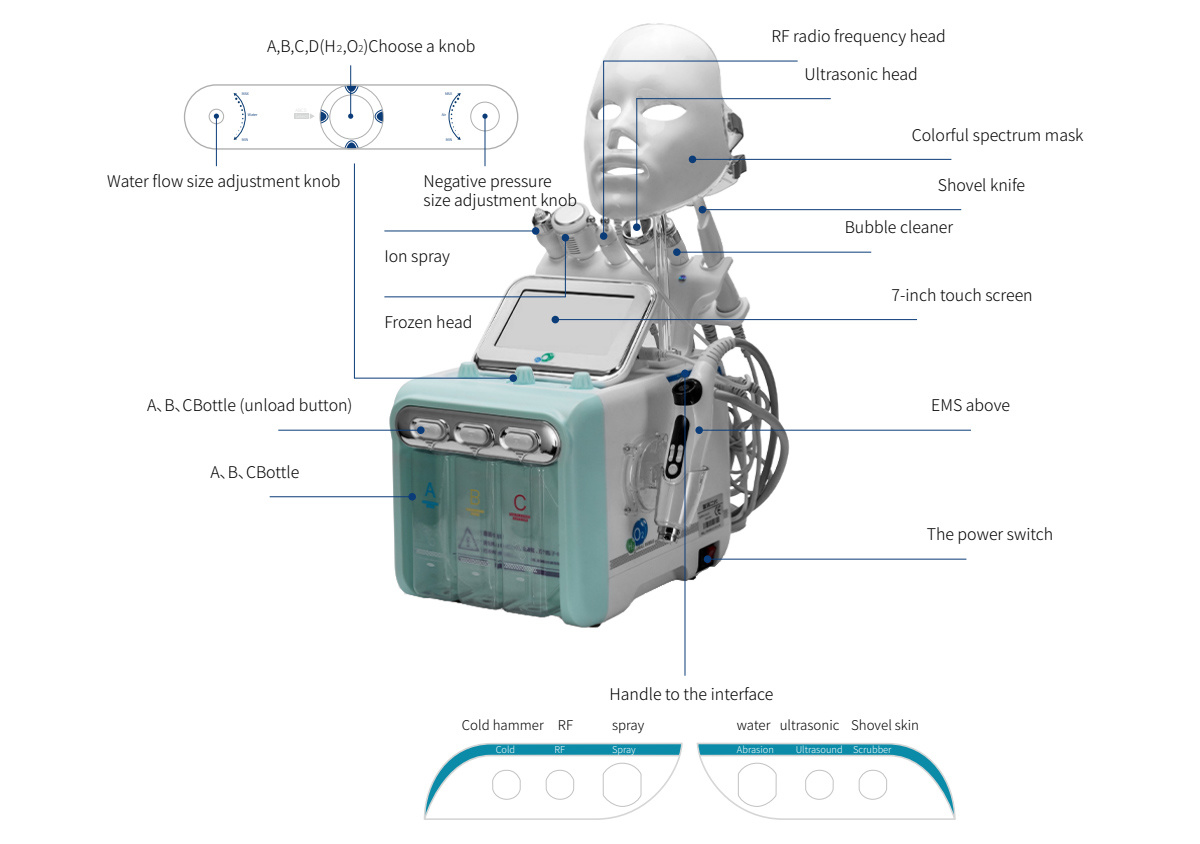

10. Description of the north and side parts of the instrument



Pay attention to
Before handling the instrument, please pour out the liquid in bottles A, B, C, D and waste liquid bottles, otherwise the liquid will enter the instrument during handling.
Damage to the instrument!

Pay attention to
During use, the instrument will beep, observe the waste liquid bottle icon flashing on the interface, if there is flashing, please pour the waste liquid in the waste liquid bottle, and reinstall the waste liquid bottle.



11. Matters needing attention

Pay attention to
11.1 Do not use stimulating skin care, cosmetics and sunscreen within 24 hours after treatment.
11.2 Apply pure moisturizing mask for 1 week.
11.3 Skin cuticle thin or zygomatic red silk serious, prohibit the use of water grinding pen.
11.4 If the skin cuticle is thin or the cheekbone is red and silk, the cheekbone area should be worn too long during RF video operation.
11.5 Severe allergic person, serious dark sore person cannot operate.



Warning

If the patient feels uncomfortable, the instrument can be stopped by pressing the hand control to ensure patient safety.



12. Maintenance

12.1 Routine inspection managers must check instruments and components
 a）Whether the power socket is reliably connected to the ground? Replace the power socket
 b）Power supply wire is deformed, broken, broken: through the naked eye inspection, whether the wire is metamorphic, deformed, if some cases, may be due to leakageCause a fire.
 Replace the power cable immediately
 c）Whether the control handle is deformed, broken or broken: check with naked eyes to see whether the wire is deteriorated or deformed. If so, please replace it immediately
 d）Please check whether the content is correct before using the instrument. If not, please stop using the instrument.

12.2 Clean
When cleaning the instrument, use a soft dry cloth to wipe the dust and a soft wet cloth to wipe the dirt. Before cleaning the product, turn off the power switch and disconnect it Open the power cord.



13. Maintenance
13.1 After buying the instrument, you need to fill in the warranty card and send it to the manufacturer or agent to have the validity of the warranty; Since the purchase of machine issued by the bill is the company's product quality problem mainframe free warranty for one year (note: with the purchase of machine bill and warranty card warranty; The warranty scope here is limited to the instrument host, excluding consumables such as accessories that need to be replaced regularly.)
13.2 After the warranty period, please contact the manufacturer directly to provide service guarantee
13.3 Repair this machine must contact with the company's customer service or dealer, do not repair without authorization, unseal, the company does not guarantee
